Size & weight
-
Dimensions
Height: 160 mm (6.3 in) Cabinet only
Width: 480 mm (18.9 in) Cabinet only
Depth: 255 mm (10 in) Cabinet only
283 mm (11.2 in) including grille and terminals - Net weight 7.7kg (17lb)
Technical details
-
Technical features

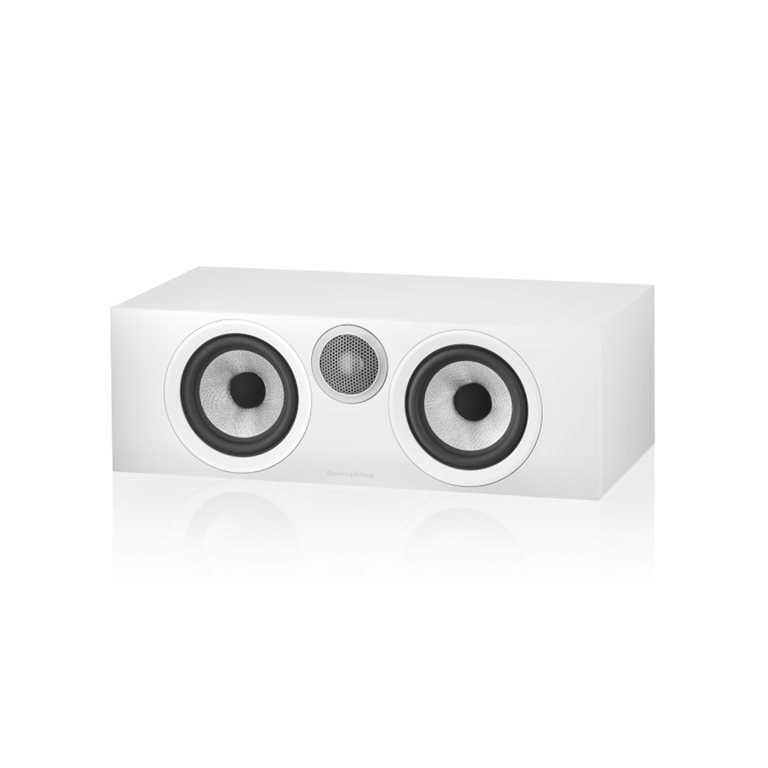

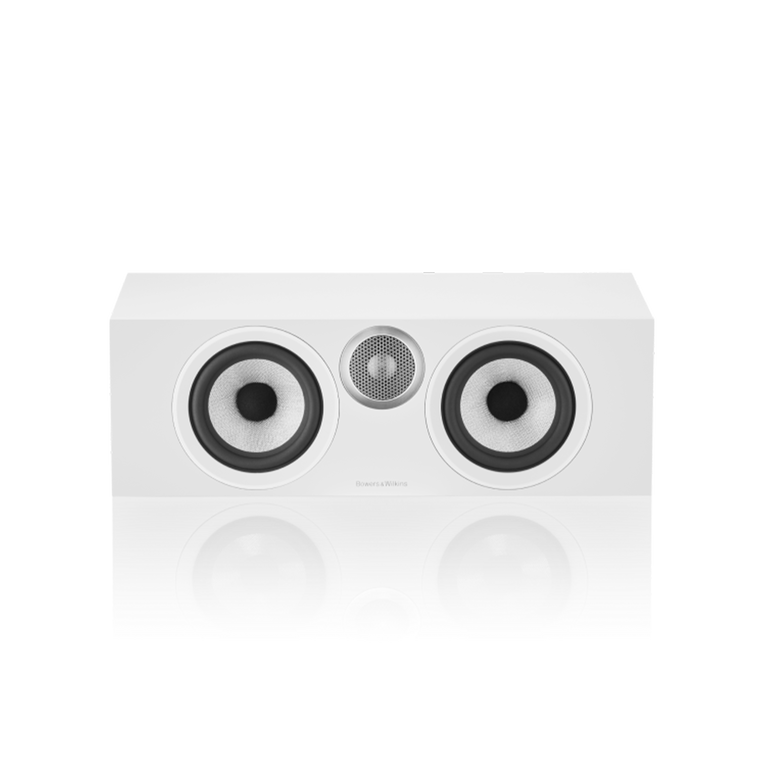

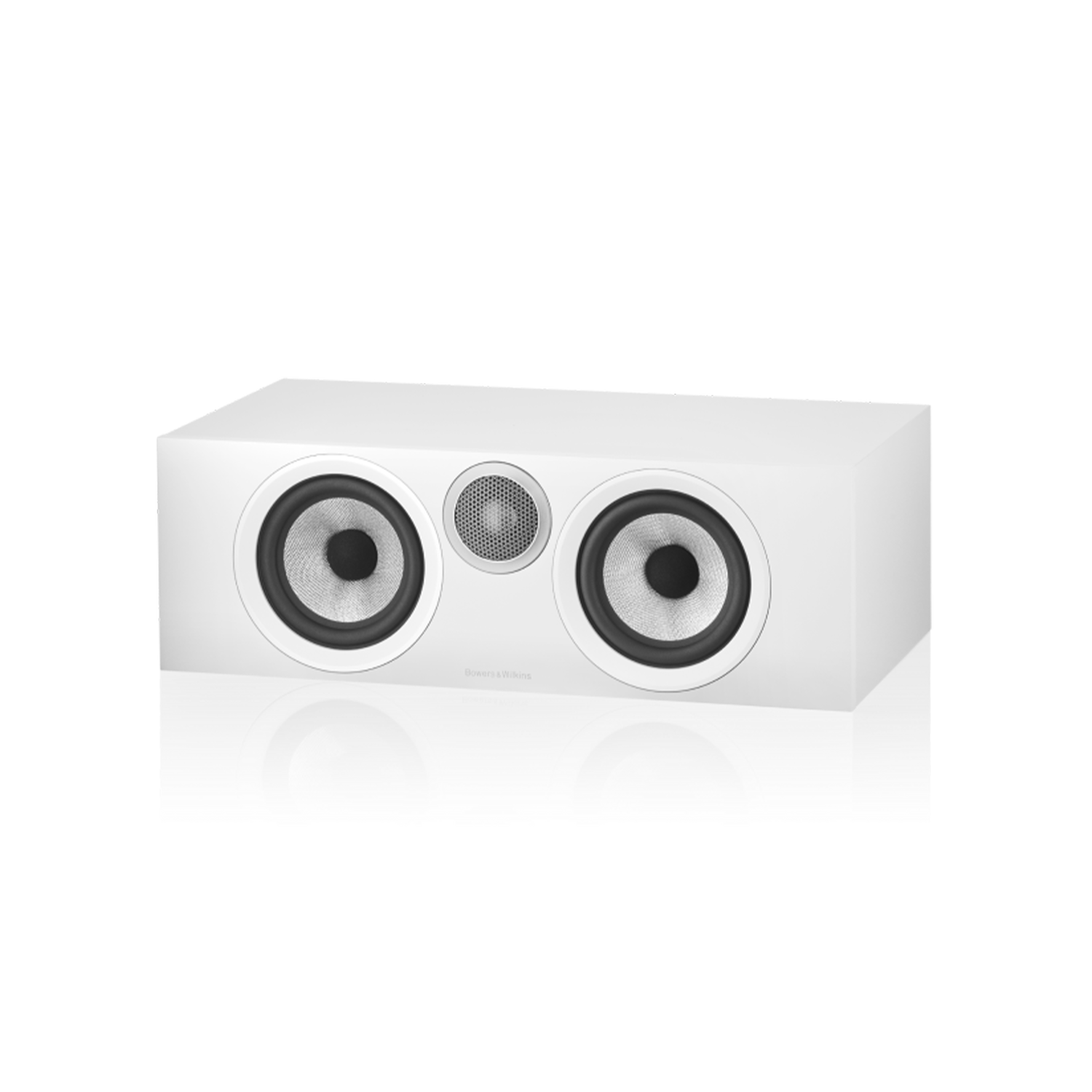

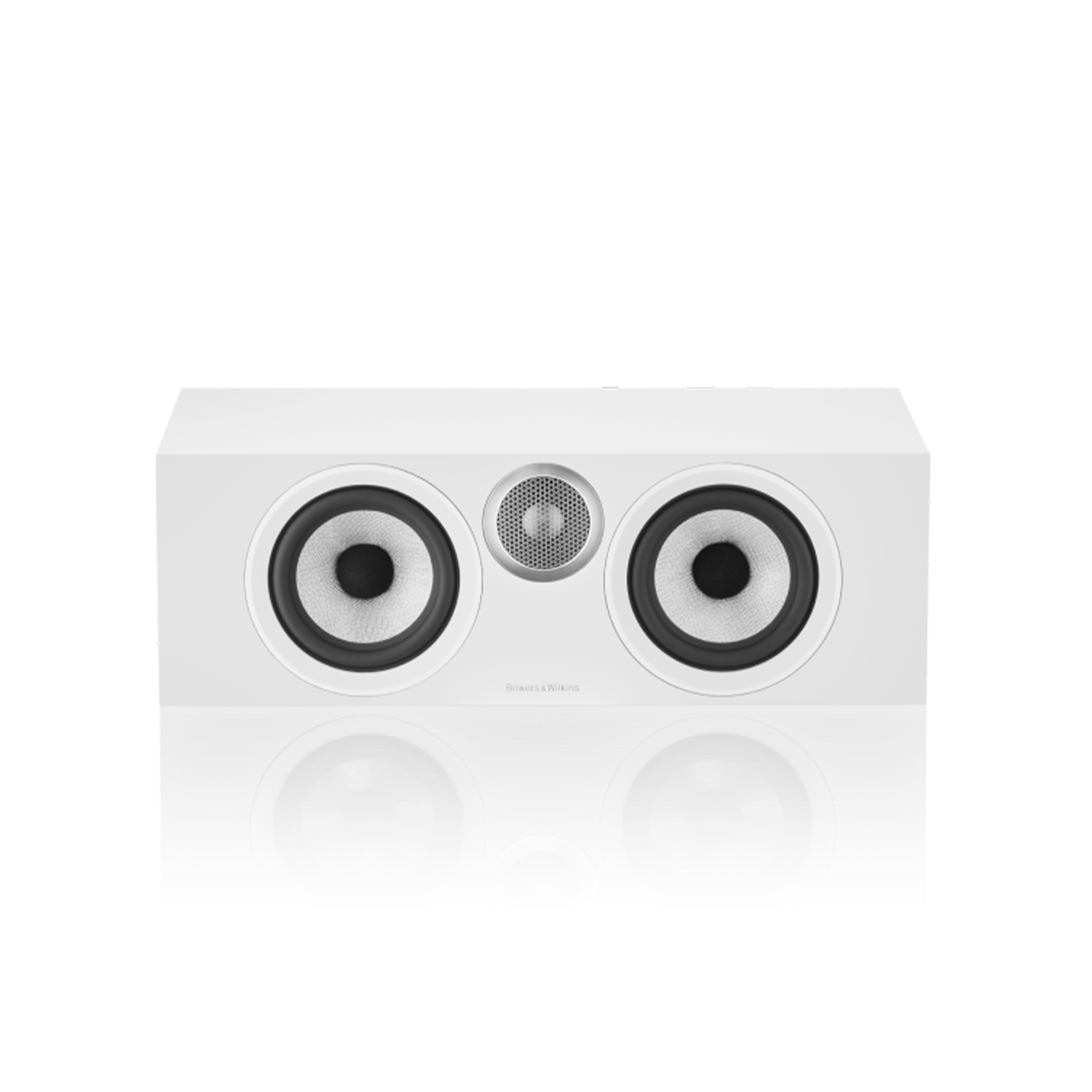

Decoupled Double Dome Titanium tweeter
Continuum™ cone bass / midrange

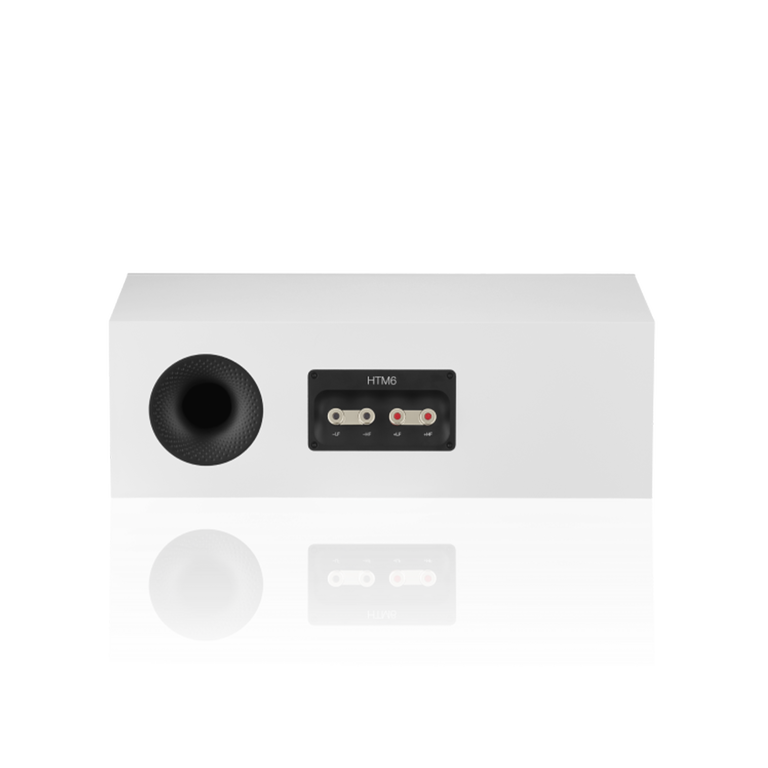

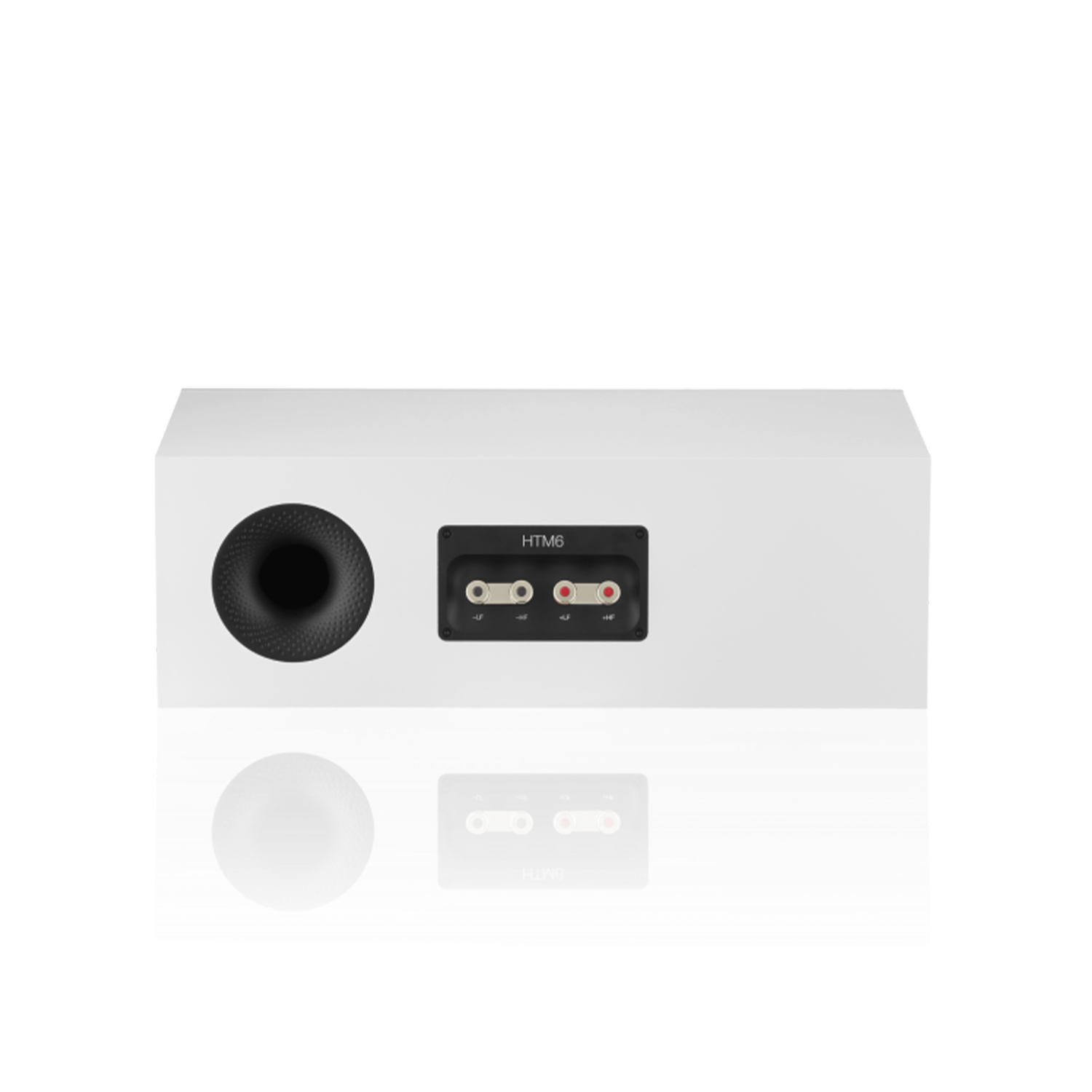

Flowport™ - Description 2-way vented-box system
-
Drive units
1x ø25mm (1 in) Titanium Dome high-frequency
2x ø130mm (5 in) Continuum cone bass / midrange - Frequency range -6dB 42Hz - 33kHz
- Frequency response 72Hz - 28kHz ±3dB
- Sensitivity 87dB spl (on axis at 2.83Vrms at 1m)
-
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 120Hz - 12kHz - Nominal impedance 8Ω (minimum 4.3Ω)
- Recommended amplifier power 30W - 120W into 8Ω on unclipped programme
- Max recommended cable impedance 0.1Ω
Finishes
-
Cabinet finishes
Black
White
Oak -
Grille finishes

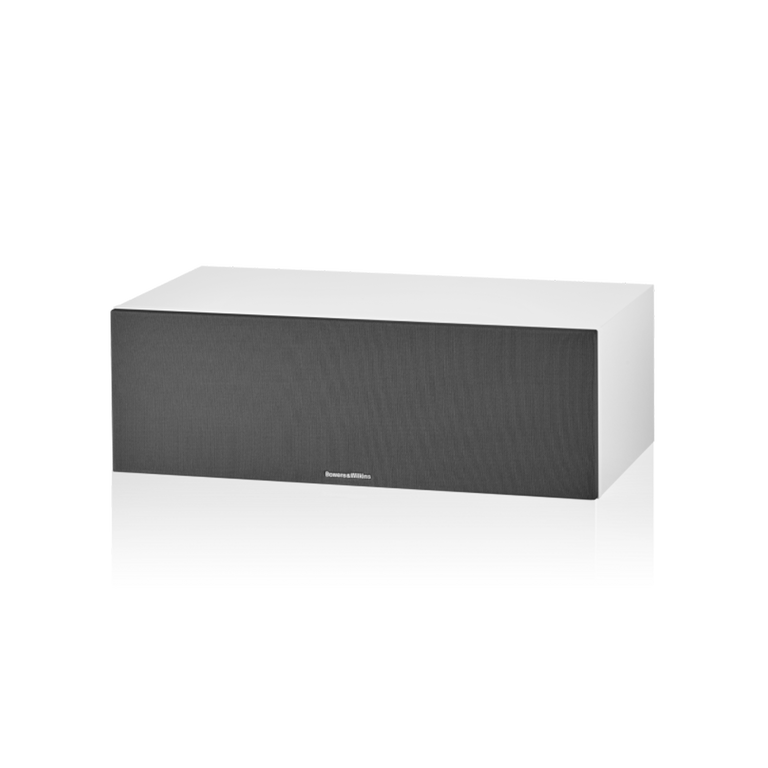

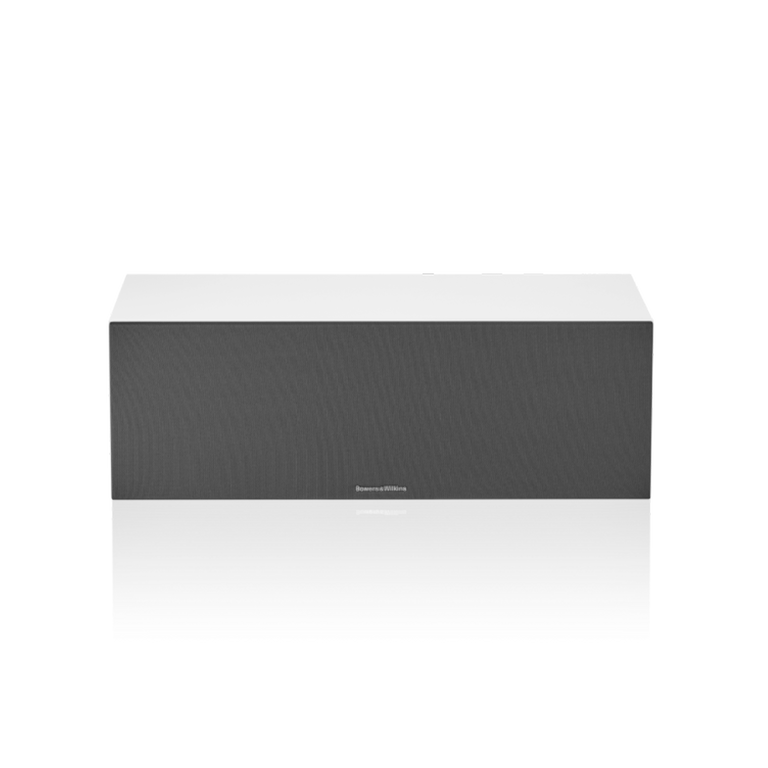

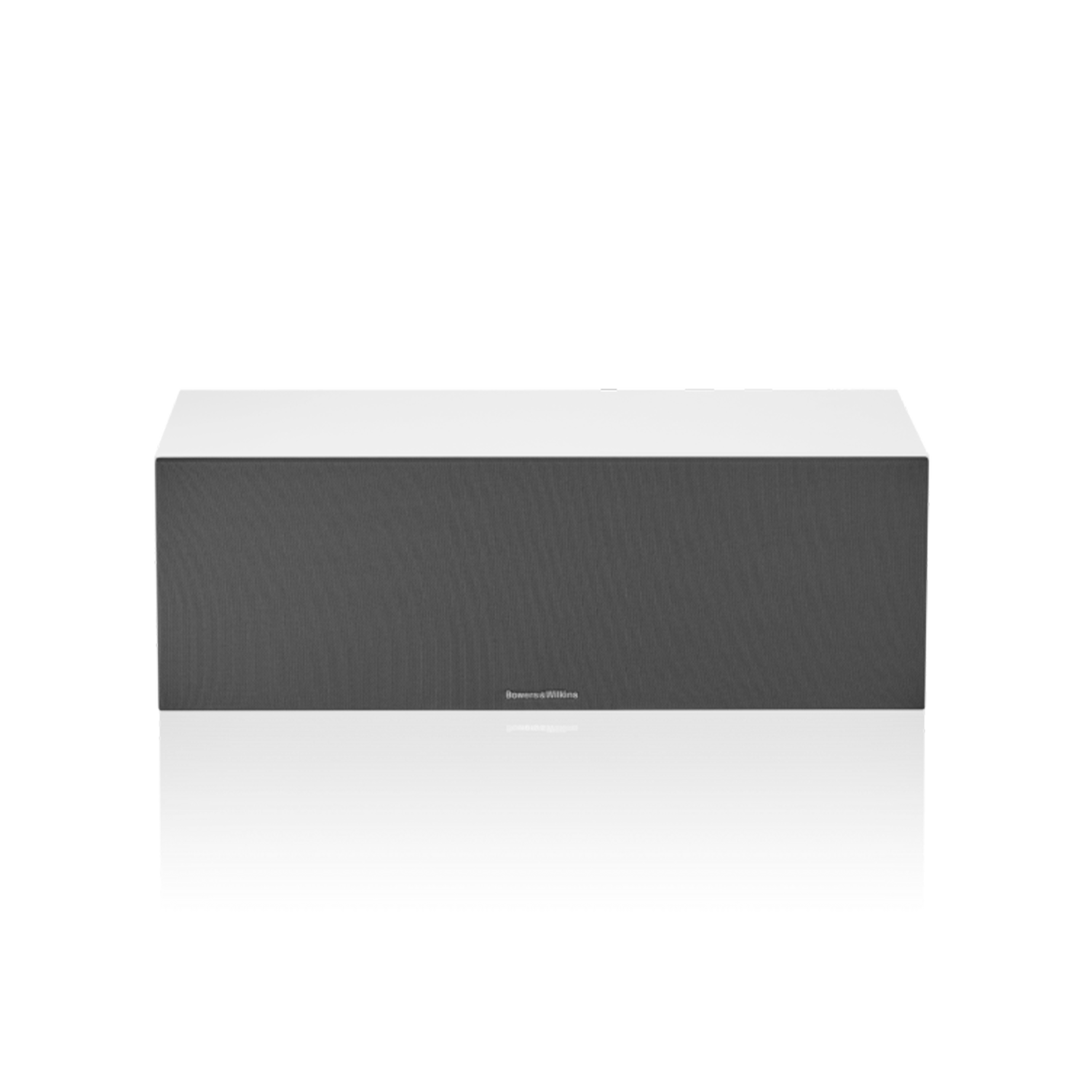

Black (Black)
Grey (White and Oak)
