Multichannel Surround
- DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / No
- DTS Neo:X / DTS Neural:X No / Yes
- Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization Yes / Yes / Yes
- Dolby ProLogic Ilz / Dolby Surround No / Yes
- Auro 3D No
- Audyssey DSX No
- Multichannel Stereo Yes
- Max. Number of Processing (Preamp) Channels 7.1
Sound Enhancements
- Mono Block Power Amp Construction No
- Discrete Power Amplifier Yes
- D.D.S.C. HD Digital No
- Pure Direct Yes
- Gold Plated RCA Terminals No
- Clock Jitter Reducer No
- Alpha Processing No
- Denon Link HD No
- Audyssey MultEQ XT
- Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
- Audyssey LFC No
- Compressed Audio Restorer Yes
Network
- Media Server Yes
- Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
- Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
- DSD Audio Streaming Yes (2.8/5.6MHz)
- FLAC HD 192/24 Yes
- WAV 192/24 Yes
- ALAC 192/24 Yes
- Gapless playback Yes (FLAC, WAV, ALAC ,DSD)
- Photo Streaming (JPEG) No
- AirPlay Audio Streaming Yes (AirPlay2)
- Internet Radio Yes (TuneIn)
- Spotify* Yes (connect)
- Pandora Yes
- SiriusXM Yes
- Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
- Ethernet Ports Yes
- Wi-Fi Yes
- Bluetooth Yes

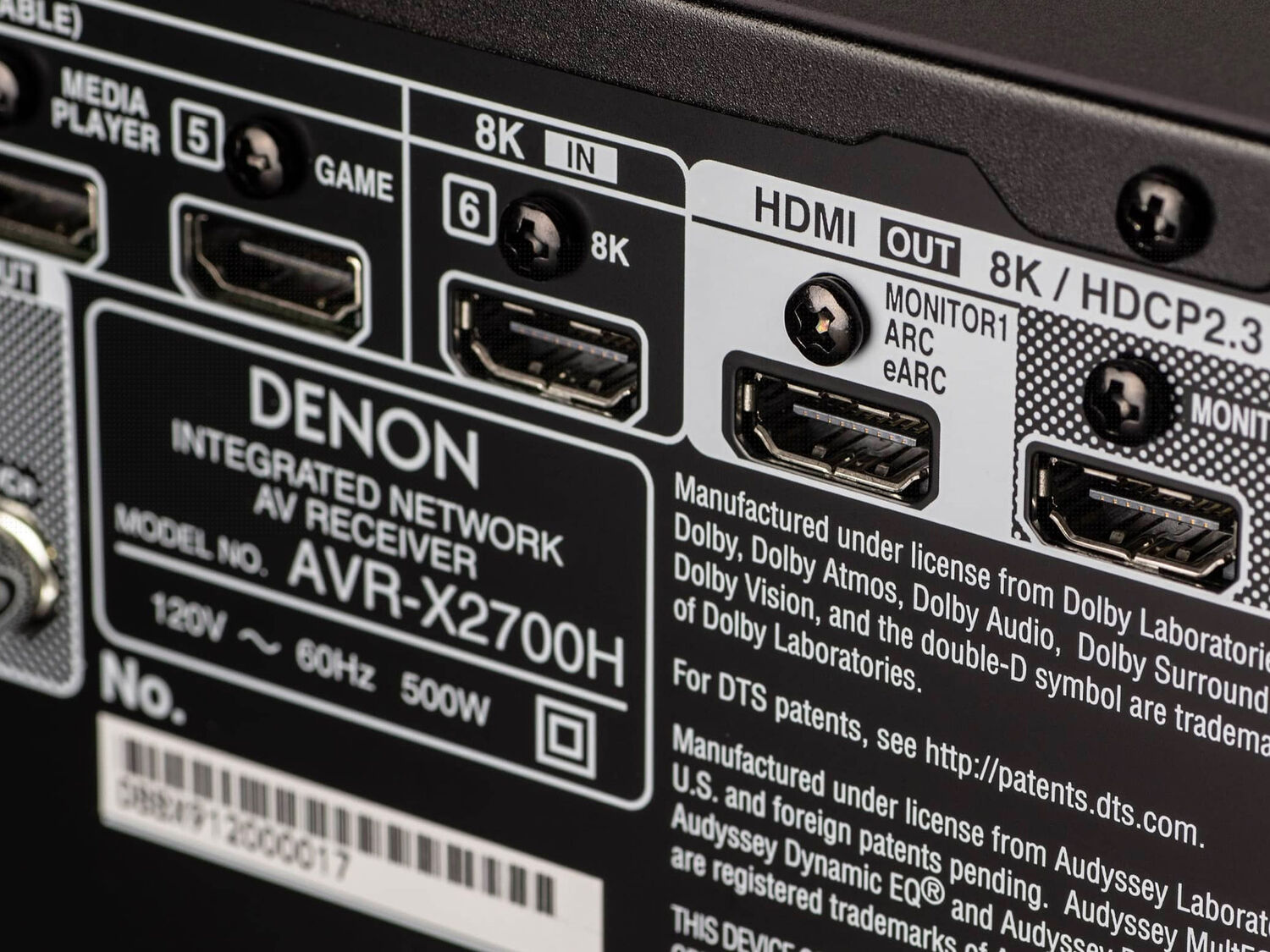

HDMI
- HDMI Inputs: Back / Front 6 / No
- HDCP2.3 support Yes
- HDMI Outputs: Main / Zone 2 / No
- Video Conversion Analog -> HDMI No
- Analogue to HDMI scaling No
- HDMI to HDMI Scaling up to 8K 60/50
- GUI Overlay on HDMI Yes
- 3D Signal Pass-through Yes
- 8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes
- 4K Signal Pass-through / Scaling / GUI Overlay Yes / Yes / Yes
- HDMI pass-though in standby mode Yes
- Picture Adjust / Noise Reduction Yes / Yes
- CEC Yes
- DSD Audio Capability No
- Audio Return Channel Yes
- Auto LipSync Yes
Multi-room CI
- Multiroom zones 2
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Preout Yes / Yes
- Zone HDMI Output from HDMI Source No
- IP Control / RS232 Control / Web Control / App Control Yes / Yes /Yes / Yes
- Remote In / Out Yes / Yes
- DC Trigger Output No
Others
- Auto Speaker Setup by Microphone Audyssey MultEQ XT
- FL Display 1 line
- Graphic User Interface - GUI Advanced
- ISF Certification Yes
- GUI Languages 3
- Setup Assistent Yes
- Quick Select Plus / Quick Select Yes / No
- Variable Cross Over Yes
- Optimized Bass Redirection Yes
- Bass Sync No
- ECO Mode Yes
- Sleep Timer Yes

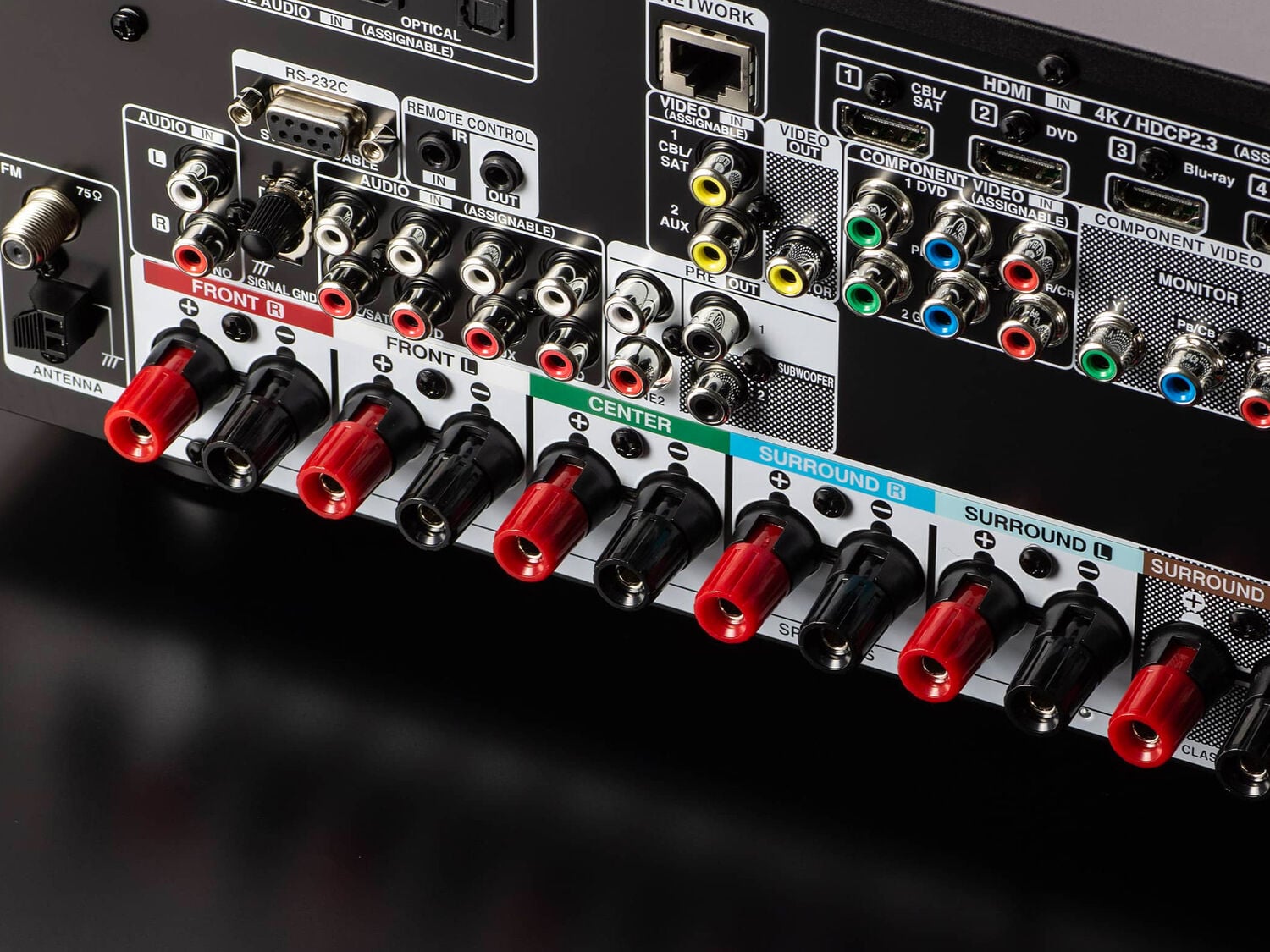

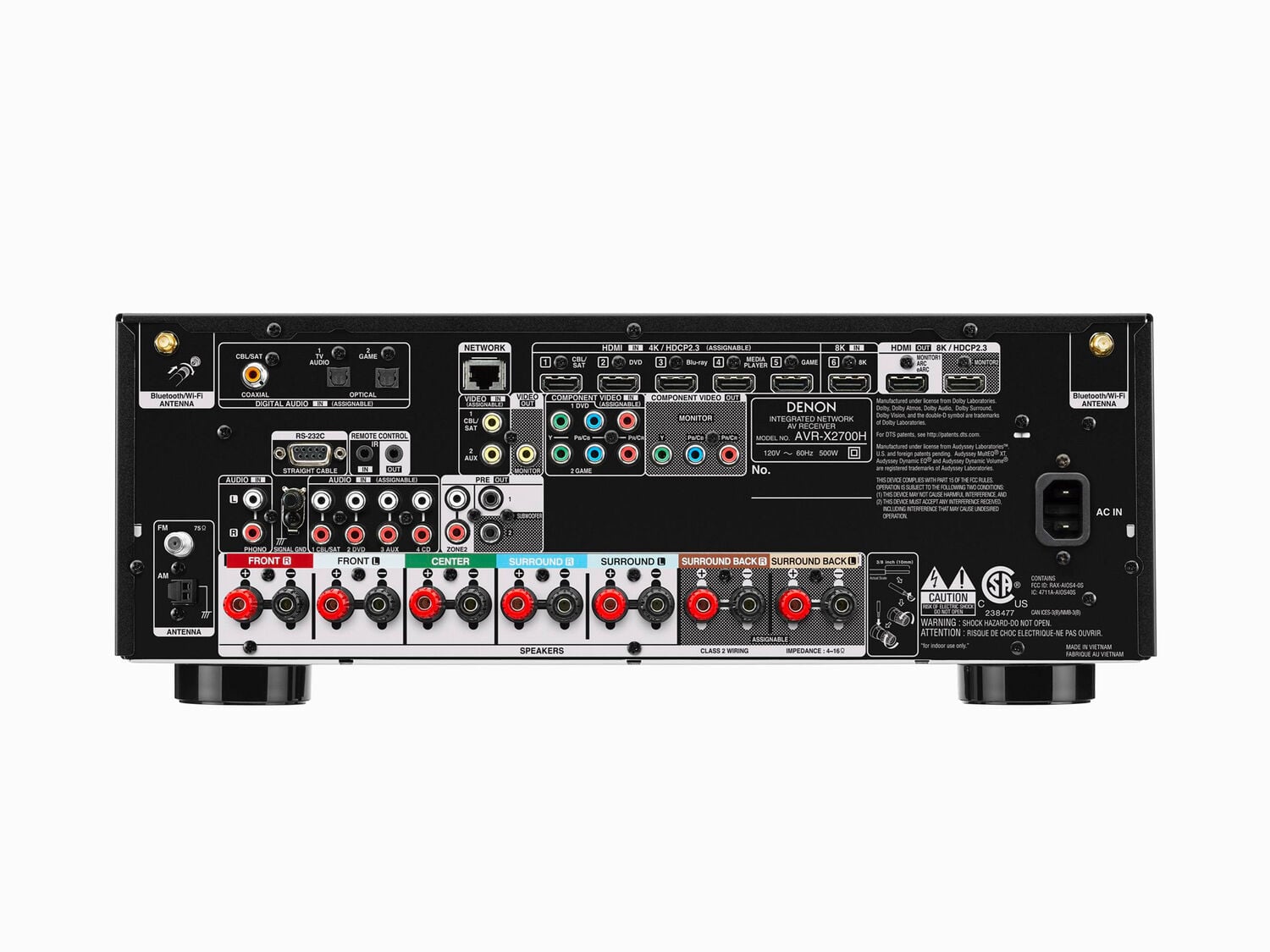

Inputs/Outputs
- Composite In / Out 2 / 1
- Component In / Out 2 / 1
- HDMI In / Out 6 / 2
- Multi-room Video Out: Video / HDMI No / No
- Analogue In/out 4 / No
- Phono (MM) In Yes
- Digital In: Optical / Coaxial 2 / 1
- Multi-room Out: Analog / Digital 1 / No
- Multichannel Pre-out Yes (0.2)
- Subwoofer Out 2
- 7.1 Multichannel Input No
- Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
- Number of Speaker Terminals 7
- Speaker A / B assignable
- Bi-amp Drive assignable
- Multi-Room Speaker Terminal assignable
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
- USB Audio / Made for iPod / Made for iPhone Yes / No / No
- AM/FM Tuner Yes
Specifications
- Number of Power Amps 7
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 95 W
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) No
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 125 W
General
- Metal Front Panel No

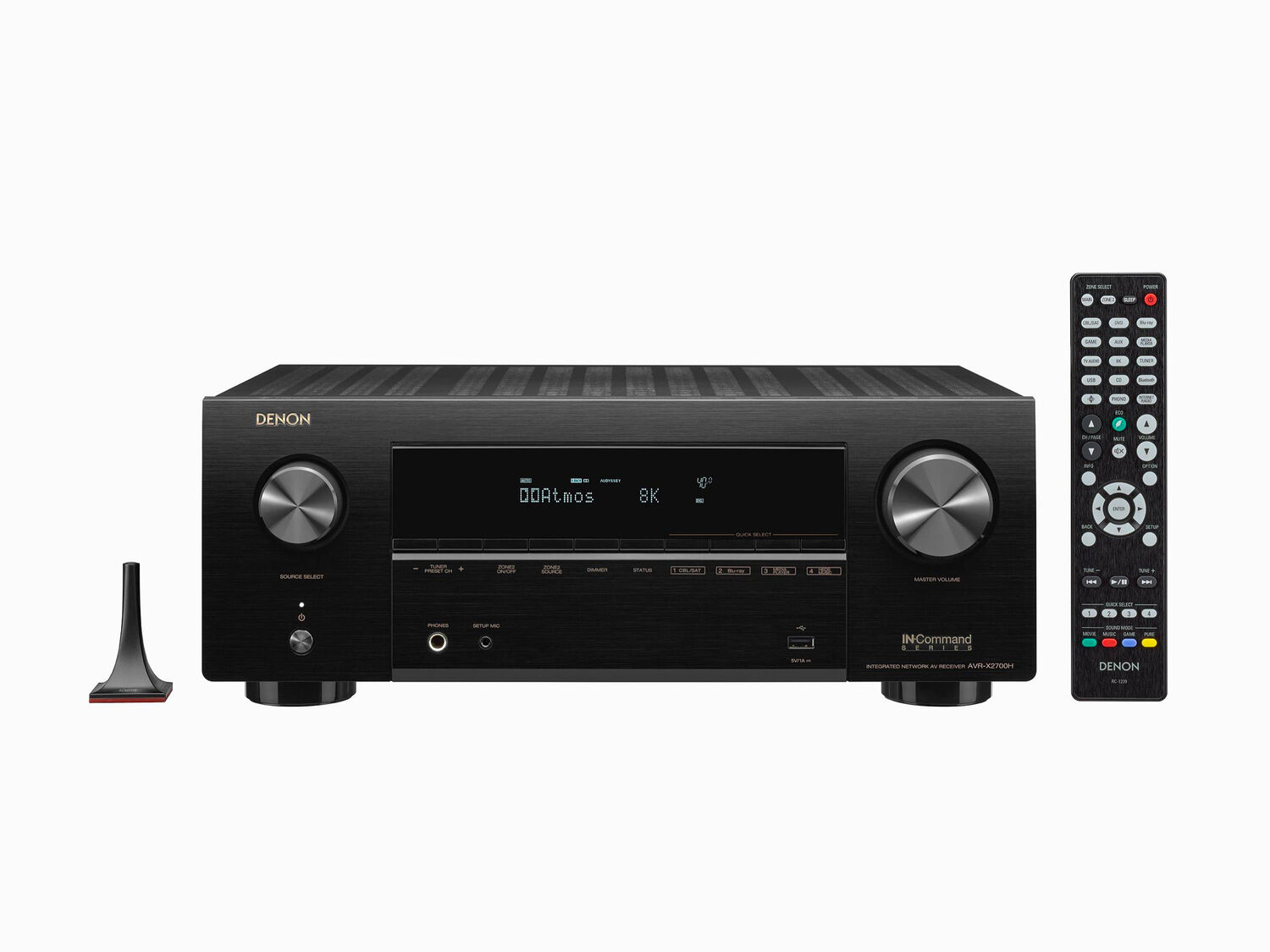

- System Remote Control RC-1239
- Pre-programmed / Learnable / LCD Display No / No / No
- Power Consumption in W 500
- Power Consumption No-Sound (ECO On / Off) in W 35 W / 75 W
- Standby Consumption in W 0.1
- CEC Standby Consumption in W 0.5
- Network Standby Consumption in W 2.7
-
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches 17.1 x 13.4 x 6.6
( 17.1 x 13.4 x 9.3 )
【 17.1 x 13.0 x 6.6 】 - Weight in LBS 21
- Tuning frequency range 520 kHz – 1710 kHz
