Meerkanaals Surround
- DTS-HD / DTS:X / DTS:X Pro Yes / Yes / No
- DTS Neo:6 / DTS Neural:X No / Yes
- DTS Virtual:X Yes
- IMAX Enhanced No
- Dolby TrueHD / Atmos / Atmos Height Virtualization / Atmos Music Yes / Yes / Yes / Yes
- Dolby ProLogic Il / Dolby Surround No / Yes
- Multichannel Stereo Yes
- Max Number of Processing (Preamp) Channels 7.1
Geluidsverbeteringen
- Discrete Power Amplifier Yes
- Copper Plated Chassis No
- Power Transformer: Toroidal / EI EI
- Pure Direct Yes
- Current Feedback Topology Yes
- Hyper Dynamic Amplifier Modules (HDAM) Yes (SA2)
- Audyssey MultEQ XT
- Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
- Subwoofer Mode: Standard / Directional Yes / No
- Dirac Live upgradability Yes
- Compressed Audio Enhancer: MDAX2 Yes
Netwerk
- HEOS Multi-Room and Streaming Yes
- Bluetooth Re-transmit for Bluetooth headphones Yes
- Volume control for Bluetooth transmitter Yes
- Network Audio Sharing Yes
- Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes
- Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
- DSD Audio Streaming Yes (2.8/5.6MHz)
- FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
- Gapless Playback Yes (FLAC, WAV, ALAC, DSD)
- AirPlay Audio Streaming Yes (AirPlay2)
- Internet Radio Yes (TuneIn)
- Spotify* Connect Yes
- Tidal* Connect Yes
- Qobuz* Connect Yes
- Pandora / SiriusXM Yes / Yes
- Other Streaming Services* Amazon Music / Amazon Music HD/ TIDAL / Deezer / iHeart Radio / SoundCloud / Mood Mix
- Roon Ready Yes
- Compatible with remote app for smartphones Marantz AVR Remote / HEOS
- Compatible with remote app for tablets Android / iOS / Amazon Kindle
- Wi-Fi / Bluetooth / Ethernet Ports Yes / Yes / Yes
HDMI
- HDMI Inputs: Back / Front 6 / 0
- HDCP2.3 support Yes
- HDMI Outputs: Main / Zone 2 / 0
- HDMI to HDMI scaling 1080P/4K to 8K
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
- 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 3 / 2 (up to 40Gbps)
- Enhanced ARC / ARC Yes / Yes
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
- Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes / Yes / No
- AMD FreeSync compatible Yes (HDMI 4-6)
- 3D Signal Pass-Through / HDMI Pass-Through in Standby Mode Yes / Yes
- Picture Adjust / Noise Reduction No / No
- CEC / DSD Audio Capability / Auto LipSync Yes / No / Yes
Multiroom/CI
- HEOS Multi-Room Integrated Yes
- HEOS Link Compatibility: IR/ IP Yes / Yes
- Multi-Room zones 2
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog No / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Preout Yes / Yes
- Zone HDMI Output from HDMI Source No
- IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
- IR Flasher In / Marantz Remote Bus Yes / Yes
- DC Trigger Output 1
- HDMI Diagnostics Yes
Overige
- Auto Speaker Setup by Microphone Audyssey MultEQ XT Dirac Live (upgrade)

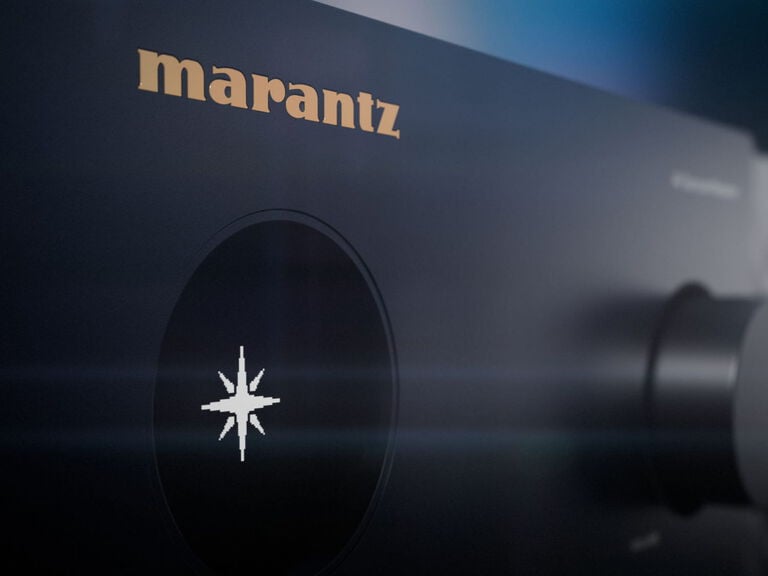

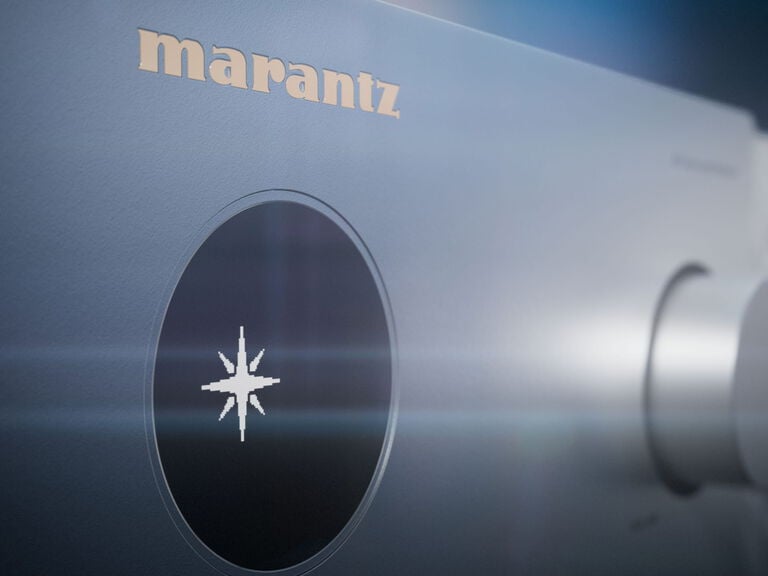

- Front Display Porthole OLED
- Graphic User Interface - GUI Modern HD GUI
- ISF Certification No
- GUI Languages 9
- Setup Assistant / Smart Select Yes / Yes
- Firmware Update by Network / USB Yes / Yes
- Variable Cross Over / Optimized Bass Redirection / Bass Sync Yes / Yes / No
- ECO Mode / Auto Power Off / Sleep Timer Yes / Yes / Yes

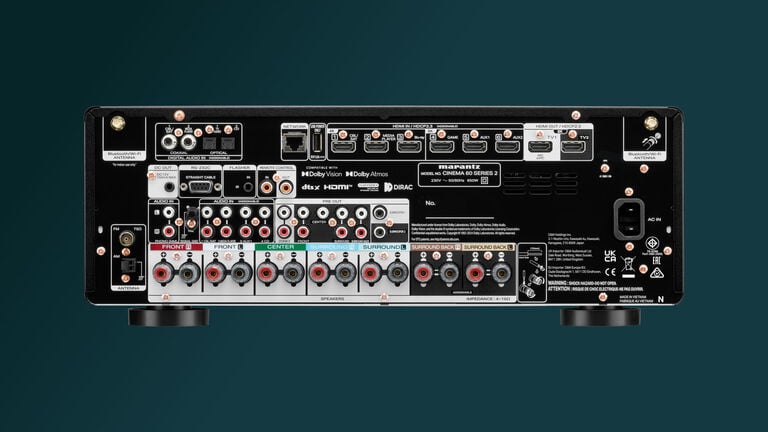

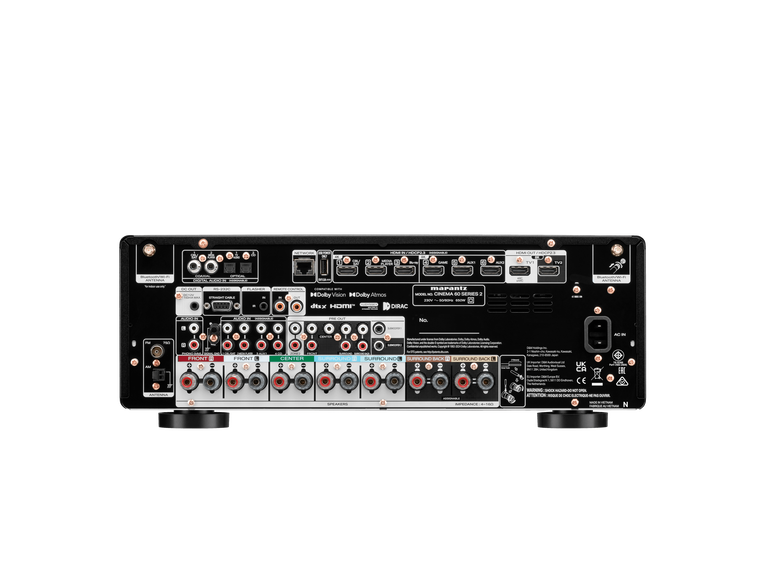

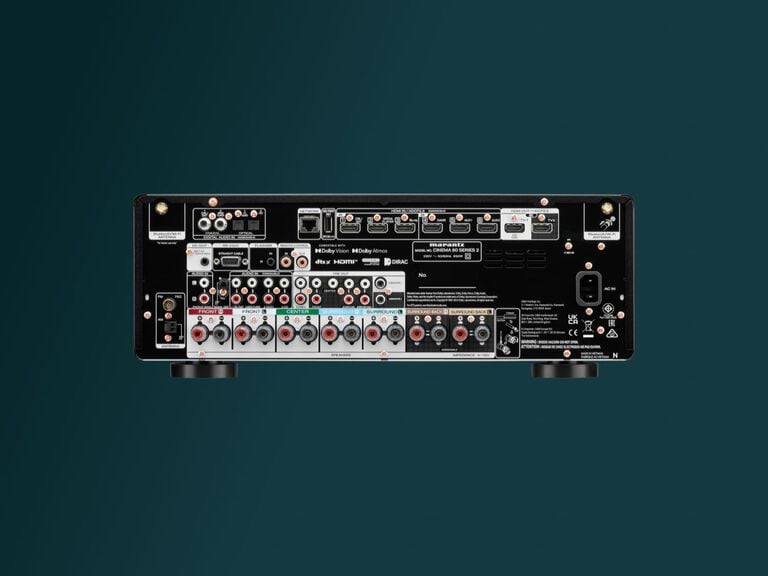

Ingangen en Uitgangen
- HDMI In / Out 6 / 2
- Multi-Room Video Out: Video / HDMI No / No
- Analog In / Out 4 / 0
- Phono (MM) In Yes
- Digital In: Optical / Coaxial 2 / 2
- Multi-Room Out: analog / digital 1 / 0
- Multichannel Pre-Out Yes (7.2)
- Subwoofer Out 2
- Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
- Number of Speaker Terminals 7
- Speaker A / B assignable
- Bi-Amp Drive assignable
- Multi-Room Speaker Terminal assignable
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
- USB Audio / Made for iPod / Made for iPhone Yes / No / No
- USB Power supply on rear panel Yes
- AM/FM Tuner Yes
Specifications
- Number of Power Amps 7
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 100W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 140W
Algemeen
- Metal Front Panel No
- System Remote Control RC054SR
- Power Consumption in W 650
- Power Consumption No-Sound (ECO on/off) in W 45 W / 75 W
- Standby Consumption in W 0.2
- CEC Standby Consumption in W 0.5
- Network Standby Consumption in W Less than 2.0
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches 17.4 × 13.9 × 6.5
17.4 × 13.9 × 9.3
17.4 × 13.5 × 6.5 - Weight in lbs. 24
- What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 external detachable antennas, AC cord
