Features
- Channels 2
- Current Feedback Topology Yes
- Full balanced circuitry architecture Yes
- Double Mono Power Amp construction Yes
- Phono EQ: Standard / Marantz Musical / Marantz Musical Premium No / No / Yes
- Digital in: USB-B / optical / coaxial / USB-A No / No / No / No
- Sample Rate digital In No
- USB-A: DSD / WAV / FLAC / AIFF / ALAC No
- USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 No
- USB-B PCM sample rate No
- DAC chip No
- Asynchronous mode rear USB No
- Bit-perfect transmission No
- Ground isolator for DAC Mode operation No
- Bluetooth / aptX / NFC No
- Streaming audio from PC No
- Wi-Fi / Wired LAN No
- Internet radio No
- AirPlay Audio Streaming No
- Windows Play to No
- vTuner / Spotify* No
- DLNA certified No
- DSD-Audio network streaming No
- Lossy formats: MP3 / WMA / AAC No
- Lossless formats: DSD / FLAC192/24 / ALAC96/24 / WAV192/24 / AIFF192/24 No
- Gapless Playback No
- Remote APP: iDevice / Android No
- Analog Mode No
- HDAM version SA3
- Power Transformer: Toroidal / El SMPS
- High Grade Audio Components Yes
- Customised Components Yes
- Symmetric PCB Layout Yes
- Aluminium extrusion heat sink Yes (Separate)
- Copper Plated Chassis Yes
- Tri Tone Control (Bass / Mid / Treble) No
- Balance / Bass / Treble / Loudness Yes / No / No / No
Others
- Marantz Musical Digital Filtering No
- Linear Drive Power Supply Yes (pre-amplifier stage)
- Liniear volume control Yes
- BI-AMP and Multichannel option Yes
- Shottky diodes Yes
- Input buffer amp (all inputs / CD only) Yes / No
- System block shielding: Copper / metal / none Yes / No / No
- Double Layer Bottom Plate Yes
- Low Noise OELD display No
- Low noise LCD display Yes
- Source Direct No
- Power Amp direct Yes
- 5mm aluminium top plate Yes

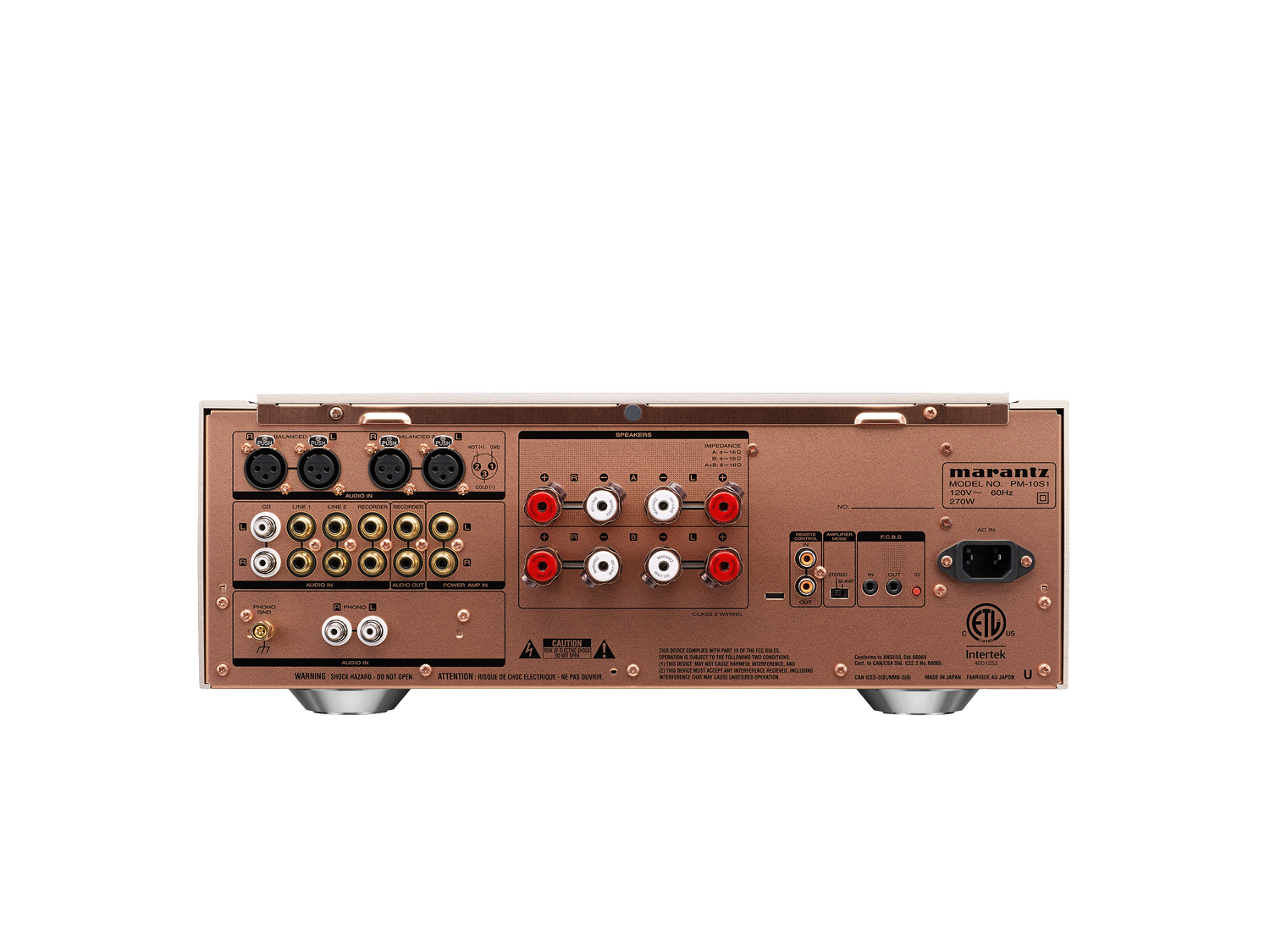

Inputs Outputs
- Audio Inputs 7
- Digital in: USB-B / optical / coaxial / USB-A No / No / No / No
- Phono Input: MM / MC Yes / Yes
- Audio Outputs 1
- Balanced In / Out 2 / No
- Pre-out / Main-in No / No
- Power Amp Direct IN Yes
- Gold Plated Cinch Yes / CD & Phono nickel-plated
- Speaker A / B No
- Speaker Terminals Marantz SPKT-100+
- Number of terminals 4
- D-Bus Yes
- Floating Control Bus (3.5 mm mono jack x 2) Yes
- Headphone Out Yes
- Headphone Gain Control (low / mid / high) No
Specifications
- Power Output (8 / 4 Ohm RMS) 200 W / 400 W
- Frequency response 5 Hz - 50kHz
- Total Harmonic Distortion 0.01%
- Damping Factor 500
- Input Sensitivity: MM 2.6 mV / 47 kohm
- Input Sensitivity: MC 280
- Input Sensitivity: High level 400 mV / 20 kohm
- Input Sensitivity: Balanced High level 800 mV / 40 kohm
- Signal to Noise Ratio: High level 111 dB(2V input/Rated output)
- Input Sensitivity: Power Amp Direct IN 1,5 V / 20 kohm
- Signal to Noise Ratio: Power Amp Direct IN 113 dB
General
- Available Colors: Gold / Silver / Black / Silver-Gold Yes / No / Yes / No
- Metal Front Panel Yes
- Power Consumption in W 270
- Standby Consumption in W 0.3
- Auto Power off Yes
- Detachable Power Cable Yes
- Remote Control RC004PMSA
- System Remote Function Yes
- Maximum Dimensions (W x D x H) in mm 440 x 453 x 168
- Weight in kg 21.5
