Amplifier
- Power Amplifier Rated output & THD (8 ohm) 8 X 100 W (8 Ω/ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %)
- Power Amplifier Rated output & THD (4ohm) 8 X 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.1%
- Frequency Response 20 Hz to 20 kHz : ±1 dB
- Connected loudspeaker Impedance 4 – 16 Ω/ohms

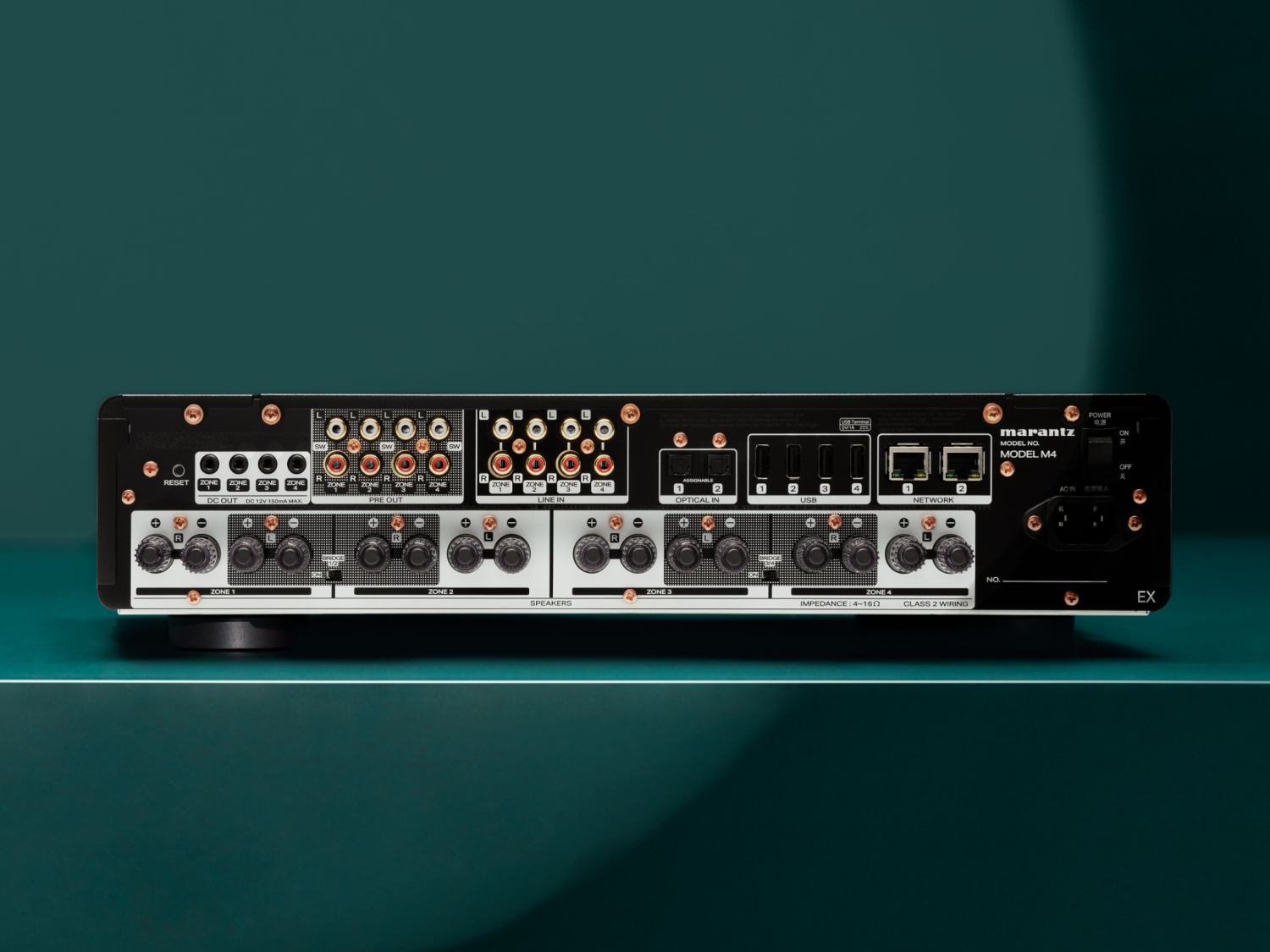

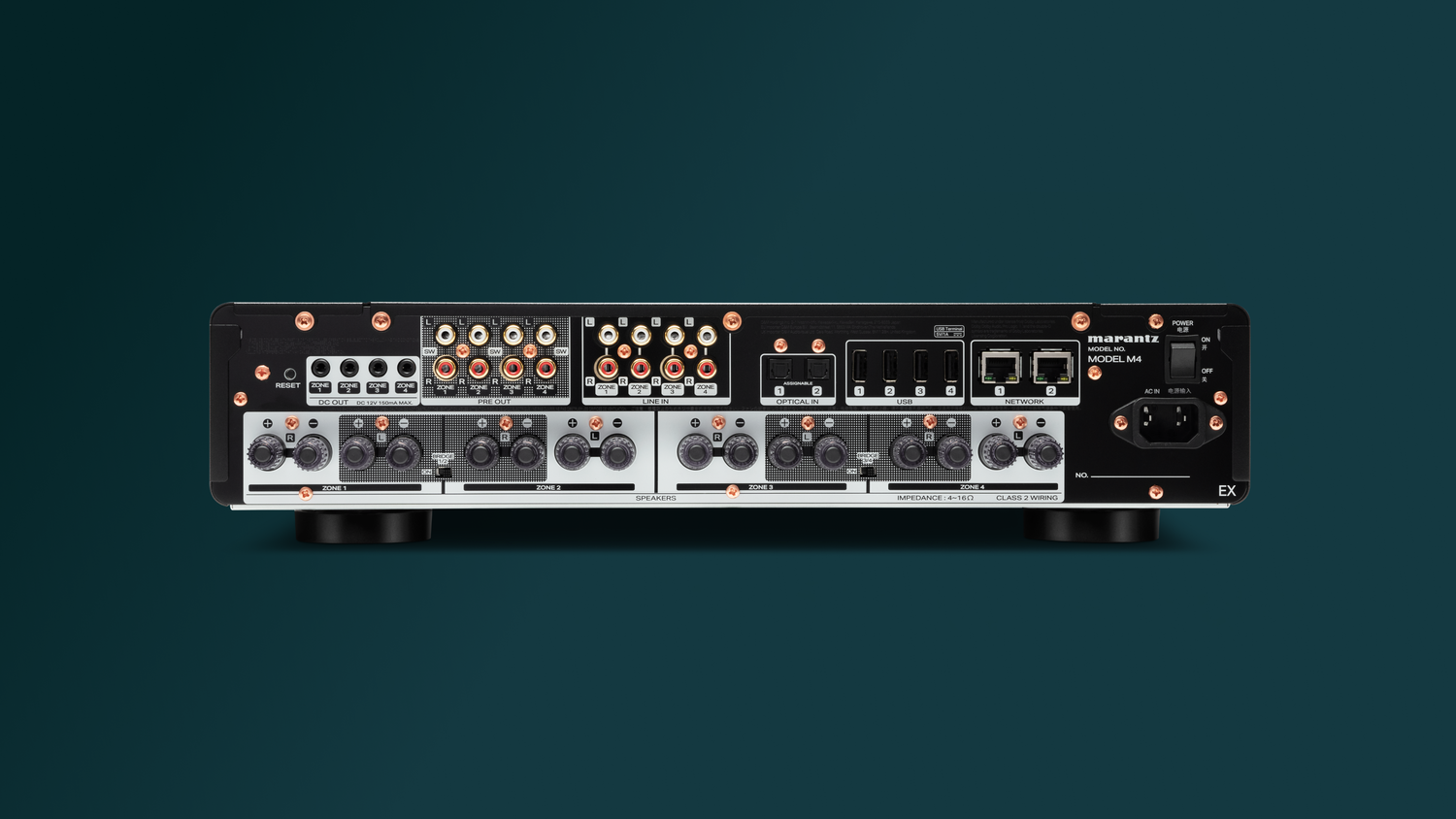

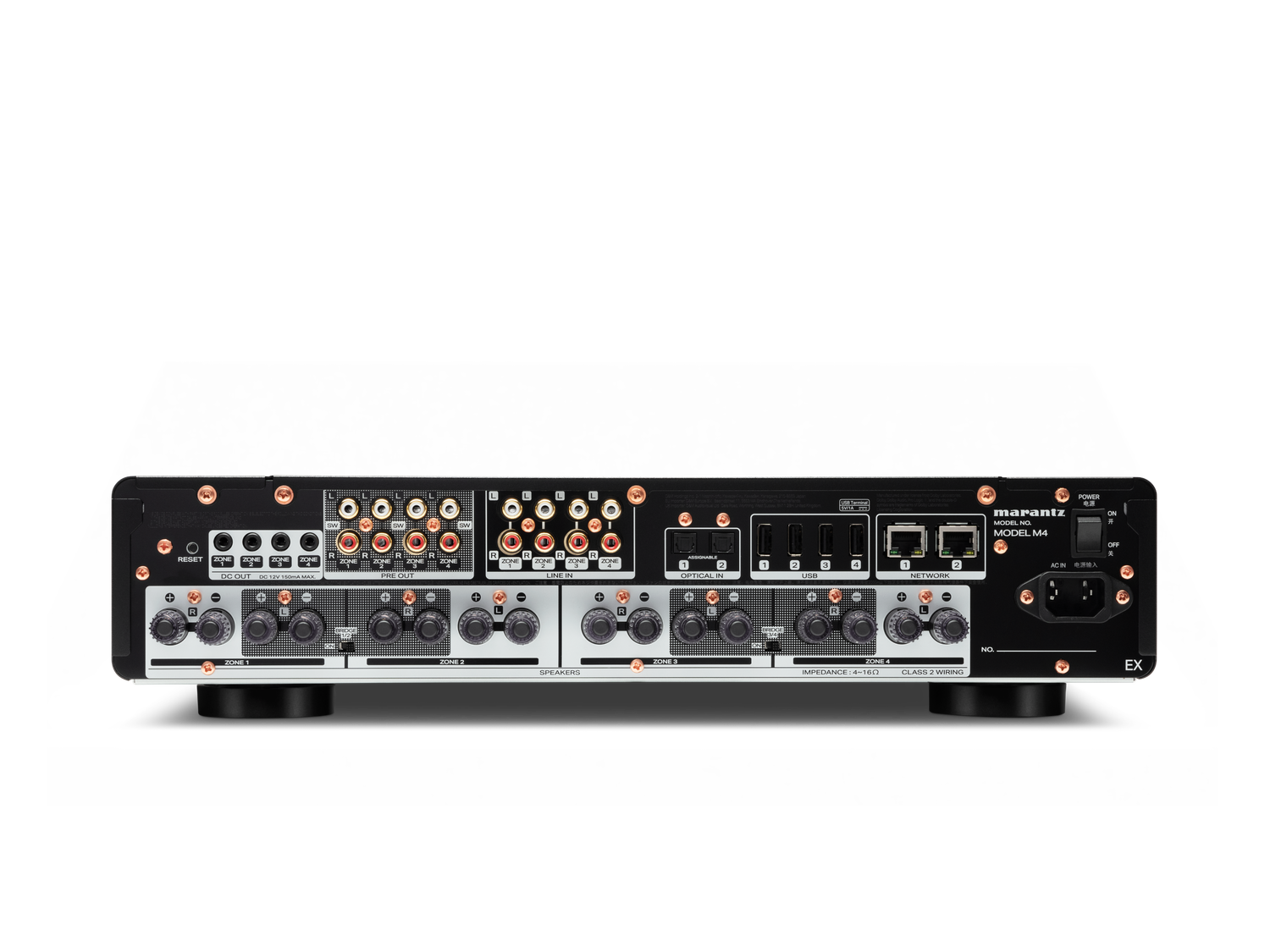

Audio Inputs / Outputs
- Loudspeaker Binding Posts 4-way binding posts
- Digital Inputs TOSLINK (2)

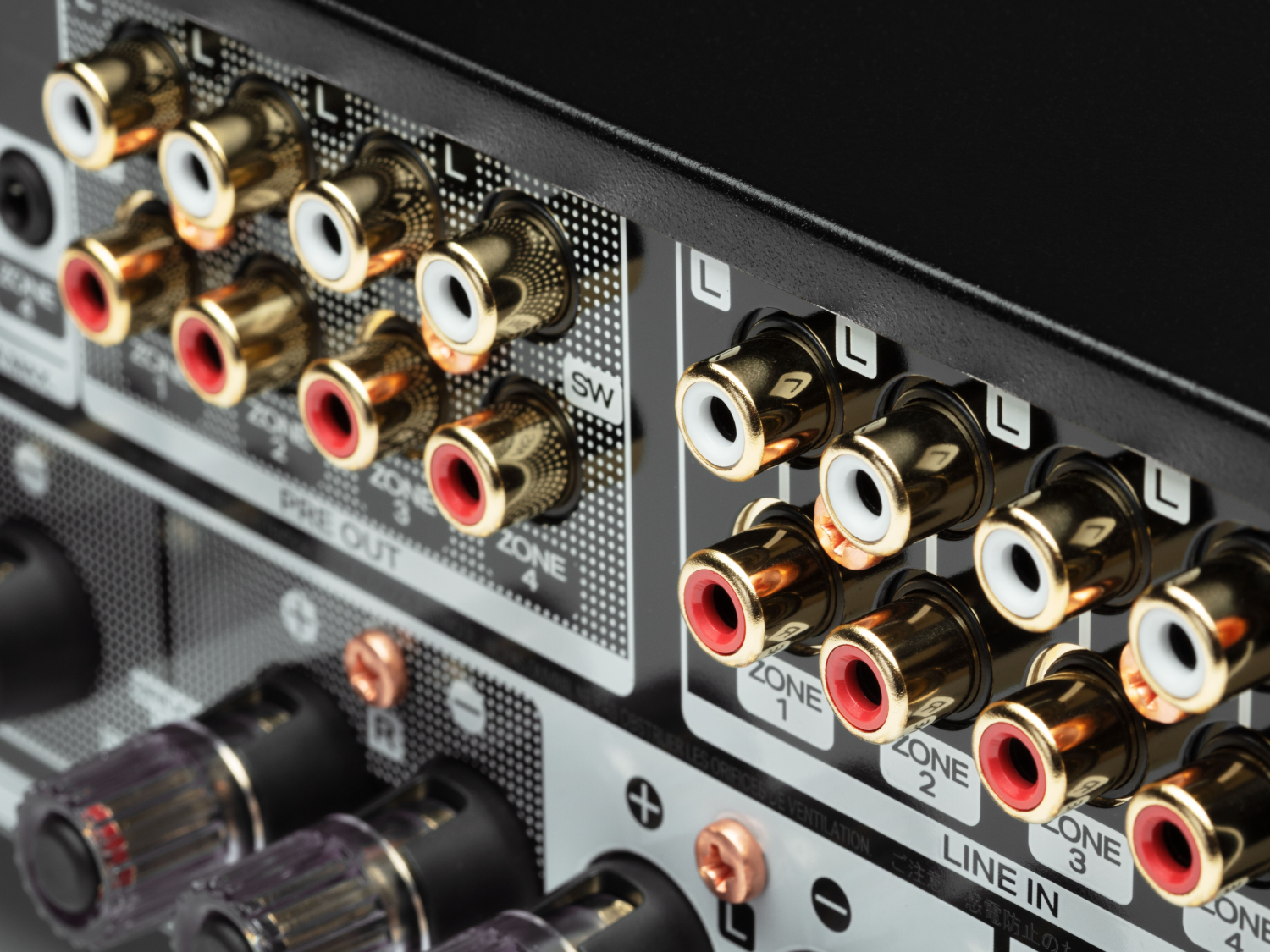

- Analog Inputs RCA L/R (4)
- Preouts RCA L/R (4)
- Subwoofer Out RCA Mono (4) (selectable)
Inputs Audio Options
- Channel Assignments Stereo (Default), Dual Mono
- Volume Limit 80-100%
- Balance -15dB to +15dB
- Adjustable High Pass / Low Pass Filters 40-250 Hz / 40-120 Hz
- EQ Bass, Treble -5dB to +5dB
- Sound Modes Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
- TV Sound Grouping Yes
Audio Format Support
- Decoding Dolby Digital, LPCM, DSD
- Stereo PCM / Multi-channel PCM Yes / Yes
- Stereo File Formats (HEOS network share or USB) WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
- Bluetooth Receive N/A
- Bluetooth Trasmit N/A
- AirPlay AirPlay 2
- Spotify Spotify Connect
Music Services and Sources
- Music Services Supported ((HEOS®, subject to change and local availability) Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
- Music stored on mobile device Yes (iOS, Android or Kindle Fire)
- NAS (Network Attached Storage) Network share
- USB Storage Device Playback Yes (4) (FAT32, NTFS formatted drives)
Networking & Control
- Wired Connectivity Ethernet (2)
- Wireless Connectivity N/A
- IR Input N/A
- IR Learning N/A
- Control System Compatibility via TCP/IP Creston, Control4, AMX
- HEOS® App iOS, Android, Kindle Fire
- Trigger Output DC 12V Yes (4)
General
- Product Color Black
- User Interface Reset button, Front power button, Rear power switch
- Dimensions (W x D x H) Inches 16.34 x 4.17 x 17.4
- Dimensions (W x D x H) mm 415 x 106 x 442
- Weight (lbs) -
- Weight (kg) -
