Features
- Channels 2
- Current Feedback Topology Yes
- Phono EQ: Standard / Marantz Musical / Marantz Musical Premium Yes / No / No
- Digital in: USB-B / optical / coaxial / USB-A 0 / 1 / 1 / 0
- Sample Rate digital In ES Sabre DAC
- Bluetooth / aptX / NFC Yes / Yes (aptX,aptX HD, aptX Adaptive) / No
- HDAM version SA3
- Power Transformer: Toroidal / El Yes / No
- High Grade Audio Components Yes
- Customized Components Yes
- Aluminum extrusion heat sink Yes
- Balance / Bass / Treble / Loudness Yes / Yes / Yes / No
Others
- Linear Drive Power Supply Yes
- Liniear volume control Yes
- Shottky diodes Yes
- Solid Heat Sinks Yes
- System block shielding: Copper / metal / none No / No / Yes

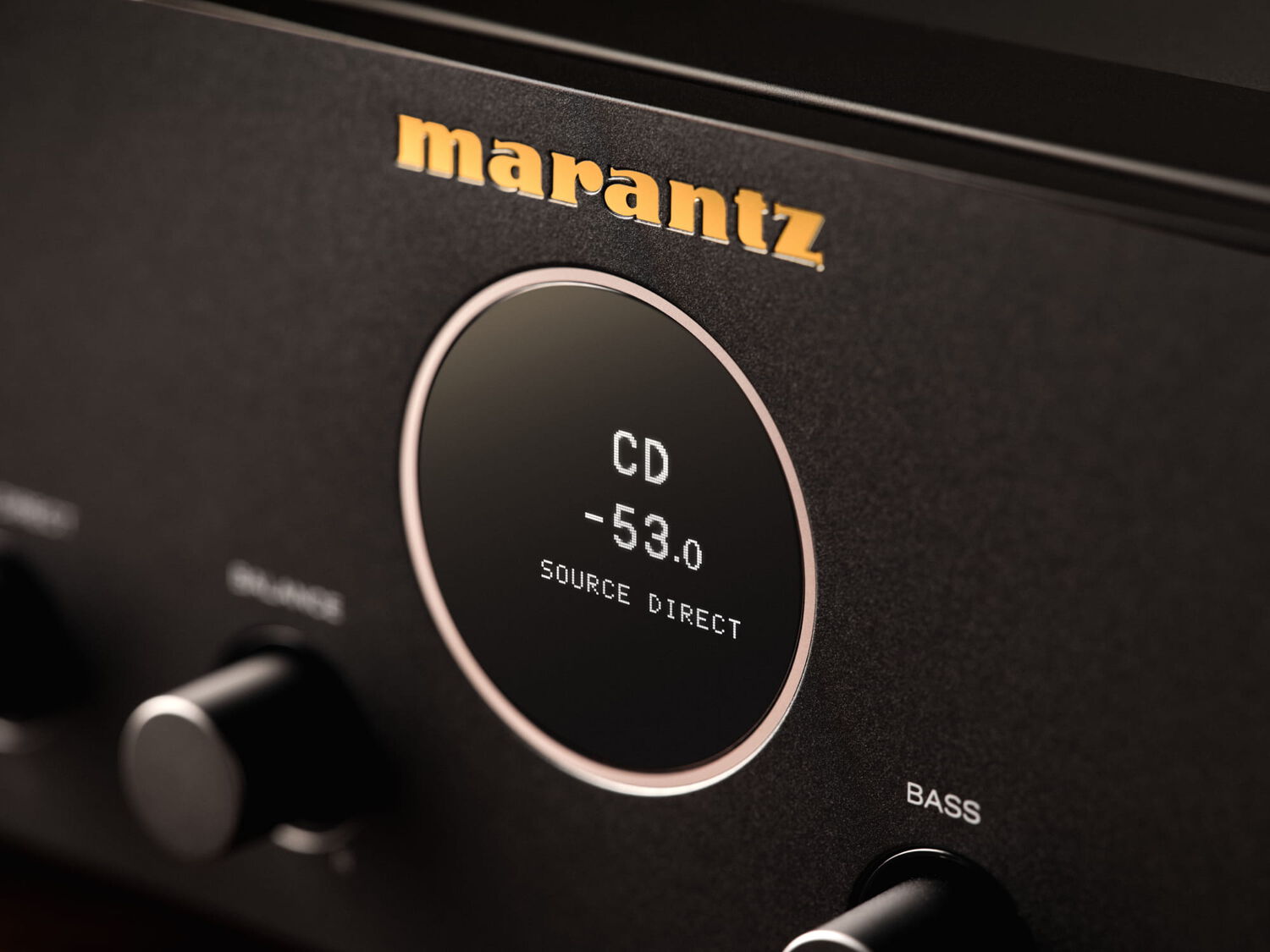

- Low noise OLED display Yes
- Source Direct Yes

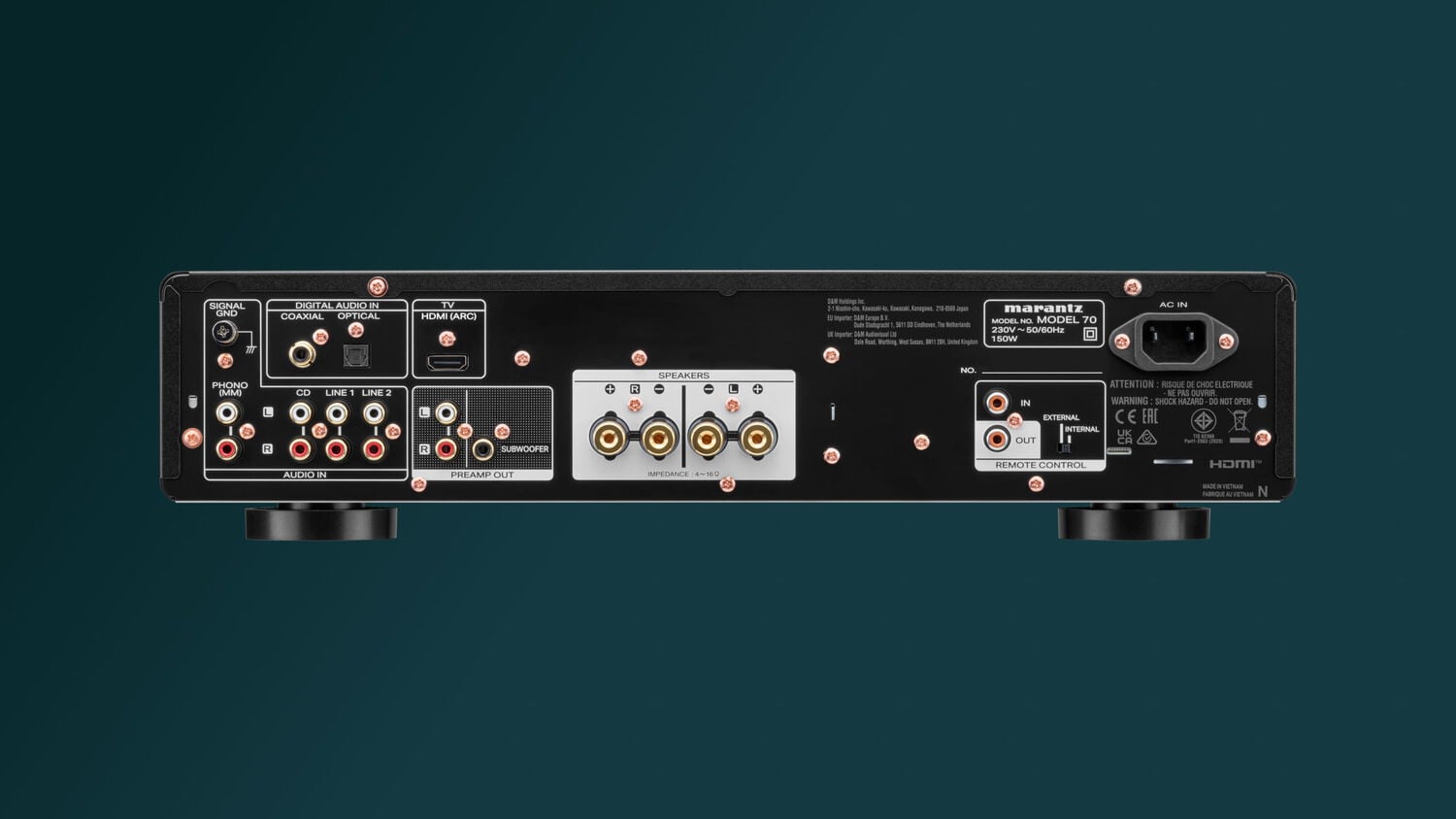

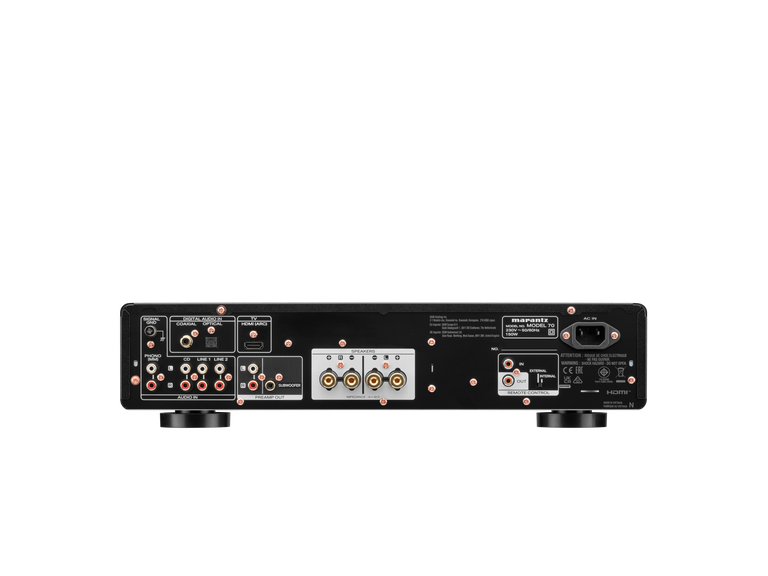

Inputs Outputs
- Audio Inputs 4
- Digital in: USB-B / optical / coaxial / USB-A 0 / 1 / 1 / 0
- Auto Power On by digital input signal Yes
- TV remote learning No
- Phono Input: MM / MC Yes / No
- Balanced In / Out Class A/B
- Pre-out / Main-in Yes + subwoofer / No
- HDMI: inputs / outputs 1 (ARC) / No
- Gold Plated Cinch Yes
- Speaker A / B No
- Speaker Terminals Metal (Gold) Screw
- Number of terminals 2
- D-Bus Yes
- Bluetooth / Bluetooth HP transmission Yes / Yes
- Bluetooth Headphone Volume Control Yes
- Headphone Out Yes
Specifications
- Power Output (8 / 4 Ohm RMS) 50 W / 65 W
- Frequency response 5 Hz - 50kHz
- Total Harmonic Distortion 0.08 %
- Damping Factor 100
- Input Sensitivity: MM 3.1 mV / 47 kOhm
- Input Sensitivity: MC No
- Signal to Noise Ratio: MM/MC 83 dB / No
- Input Sensitivity: High level 185 mV / 18 kOhm
- Signal to Noise Ratio: High level 110dB (2V input)
- Treble Control ±10 dB at 15kHz
- Bass Control ±10 dB at 50Hz
General
- Available colors Black, Silver-Gold
- Power Consumption in W 150
- Standby Consumption in W 0.3
- Auto Power off Yes
- Detachable Power Cable Yes
- Remote Control RC006PMCD
- System Remote Function Yes
- Maximum Dimensions (W x D x H) in mm 442 × 375 × 109
- Weight in kg 7.9
- Carton Maximum Dimensions (W x D x H) in mm 522 × 469 × 190
- Carton Weight (inc. product) in kg 9.8
