Size & weight
- Net weight 20.53kg
-
Dimensions
Height: 925 mm cabinet only
964 mm including plinth
Width: 165 mm cabinet only
252 mm including plinth
Depth: 263 mm cabinet only
300 mm including grille and terminals
321 mm including plinth
Technical details
-
Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone FST midrange
2x ø130mm (5 in) Aerofoil profile bass - Frequency range 43Hz and 33kHz
- Frequency response 48Hz - 28kHz ±3dB
-
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 300Hz - 20kHz
- Nominal impedance 8Ω (minimum 3.1Ω)
- Recommended amplifier power 30W - 150W into 8Ω on unclipped programme
- Max recommended cable impedance 0.1Ω
- Sensitivity 88dB spl (2.83Vrms, 1m)
-
Technical features
Decoupled Carbon Dome tweeter
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™ - Description 3-way vented-box system
Finishes
-
Cabinet finishes
Gloss Black
Satin White
Mocha -

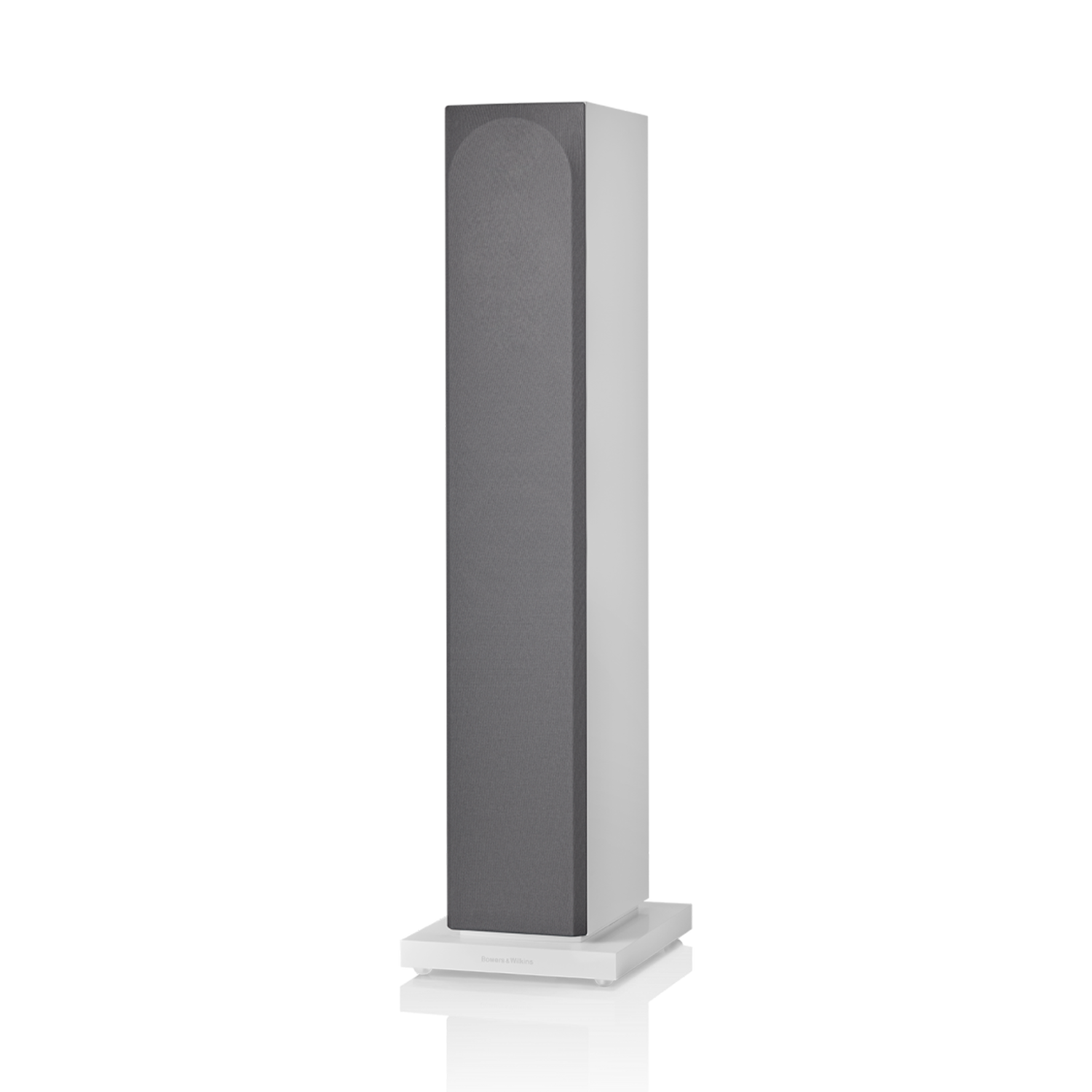

Grille finishes
Black
Grey (Satin White only)
