The MM8077 is expertly crafted to meet all your high powered needs and drive even the most demanding speakers by designing the entire unit to deliver consistent and precise power wherever and however you need it.
Precise power delivered
Key Features
-
Clean and consistent power
The power supply features a high current toroidal power transformer along with high power (71WVDC) filter capacitors with a total 100,000µF capacitance to easily handle sharp short-term transient peaks.
-
Ultimate powerhouse
Designed for the ultimate music and movie surround sound experience, the Marantz MM8077 7-channel power amplifier delivers power and detail, and is rated at 150 watts per channel into 8 ohms, and 180 watts per channel into 6 ohms.
Featuring Our Unique Current Feedback
Featuring our unique current feedback discrete power amp output stages that are identical for all channels, the MM8077 is equipped with multiple high current discrete power transistors that feature high slew rate and wide operating bandwidth to extract the most detail from today’s high resolution audio formats.
Masterfully Built
The output devices are mounted on our unique dual extruded aluminum alloy heat sink assembly, configured in a tunnel arrangement that provides both passive and active cooling. The massive heat sinks feature multiple ribbed fins that provide a large passive cooling area, and the assembly is book-ended with a whisper quiet fan that automatically kicks in to provide near silent active cooling when the soundtrack heats up. As the fan is mounted internally directly to the heat sinks, and not externally to the chassis cover as is often the case, even when it’s running, it’s designed to be whisper quiet.
Learn More"Overall, the Marantz MM8077 performed extremely well, with a sonic character that leaned toward a warmer, fuller sound."
"The AV8801 and MM8077 are made for people who want the performance of extremely high-end gear without the price tag, and we think these products fit that niche nicely."
All the details
-
Features
Number of Channels 7 Current Feedback Topology Yes Discrete Amplification Yes Power Transformer Toroidal Chassis Copper Plated IN/OUTPUTS

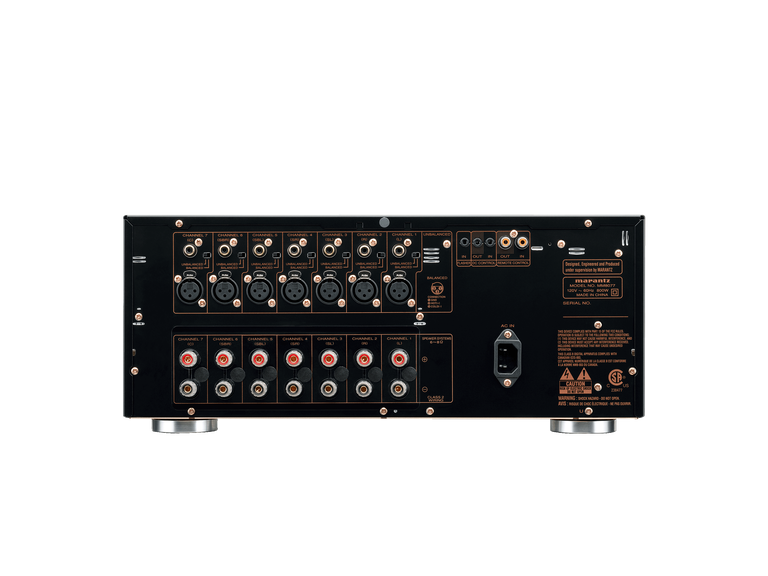

Main Amplifier In Balanced & Unbalanced: 7ch (Exclusive use by a selector switch.) DC Triggers 1 In / 1 Out D-Bus Remote (RC-5) In/Out 1 In /1 Out Flasher In/IR Receiver In/Emitter out 1/0/0 Specifications
Power Output 150W (20Hz-20kHz, 0.08%) S/N Ratio 105dB Freq. Response (Analog In) 8Hz-100kHz (+/- 3dB) General
Color Black Front Panel Aluminum/Glass-reinforced resin Power Requirement AC 120 V, 60 Hz Power Consumption 800W (Standby: 0.4W) Dimensions W x H x D (Inchs) 17.32" x 7.29" x 15.1" Weight (lbs) 45.41
