常规信息
- Unit (W × H × D mm) 440 × 192 × 442
- Cabinet Size 440 × 192 × 422
- Net weight 33.0kg
- Packaging Dimensions (W × H × D mm) 600 × 379 × 540
- Packaging gross weight 38.4kg
- Carton Color 1 Color (Material color: Brown Printing: Black)
- Panel Color Black / Marantz Champagne
- Front (Center) Pane Aluminum
- Back-shell Aluminum
- Front panel illumination 是 (All sides, Dimmer)
- Side cover Aluminum (Thickness: Max 15.8mm)
- Top cover Aluminum (Thickness: 12mm)
- Bottom Layer / Bottom plate Triple layer copper-plated
- Foot Solid aluminum with Copper
音频
-
频率响应
SACD: 2Hz–50kHz (-3dB)
CD: 2Hz–20kHz (±1.0dB) -
Harmonic distortion
SACD: 0.0004%
CD: 0.0015% -
S/N
SACD: 118dB
CD: 116dB -
动态范围
SACD: 112dB
CD: 98dB -
Line Output Leve
UNBALANCED : 2.0Vrms
BALANCED : 4.0Vrms - 耳机输出put Level 130mW / 32 ohms
-
Power Consumption
55W
Less than 0.3W (at Standby)
音频功能
- Output Circuit New HDAM
- Power Transformer Toroidal
- Headphone Circuit Discrete
- H/P Amp Gain Setting 是 (Low / Mid / High)
- H/P On.Off Setting H/P Off automatically, when in use
- DAC Circuit New MMM-Conversion
- Dither MMM-Stream (Dither 1, 2, Off)
- 噪声整形器 MMM-Stream (Balanced, Natural, Dynamic Music, Dymanic Voice)
-
数字滤波器
MMM-Stream
Filter 1, 2 Selectable - Jitter Reducer 是
- DAC Master Clock Design (SACD, USB-A, USB-DAC) 是
- Asynchronous mode (for USB-B input) 是
- Isolator (for USB-B input) 是 (Complete Isolation System Duo)

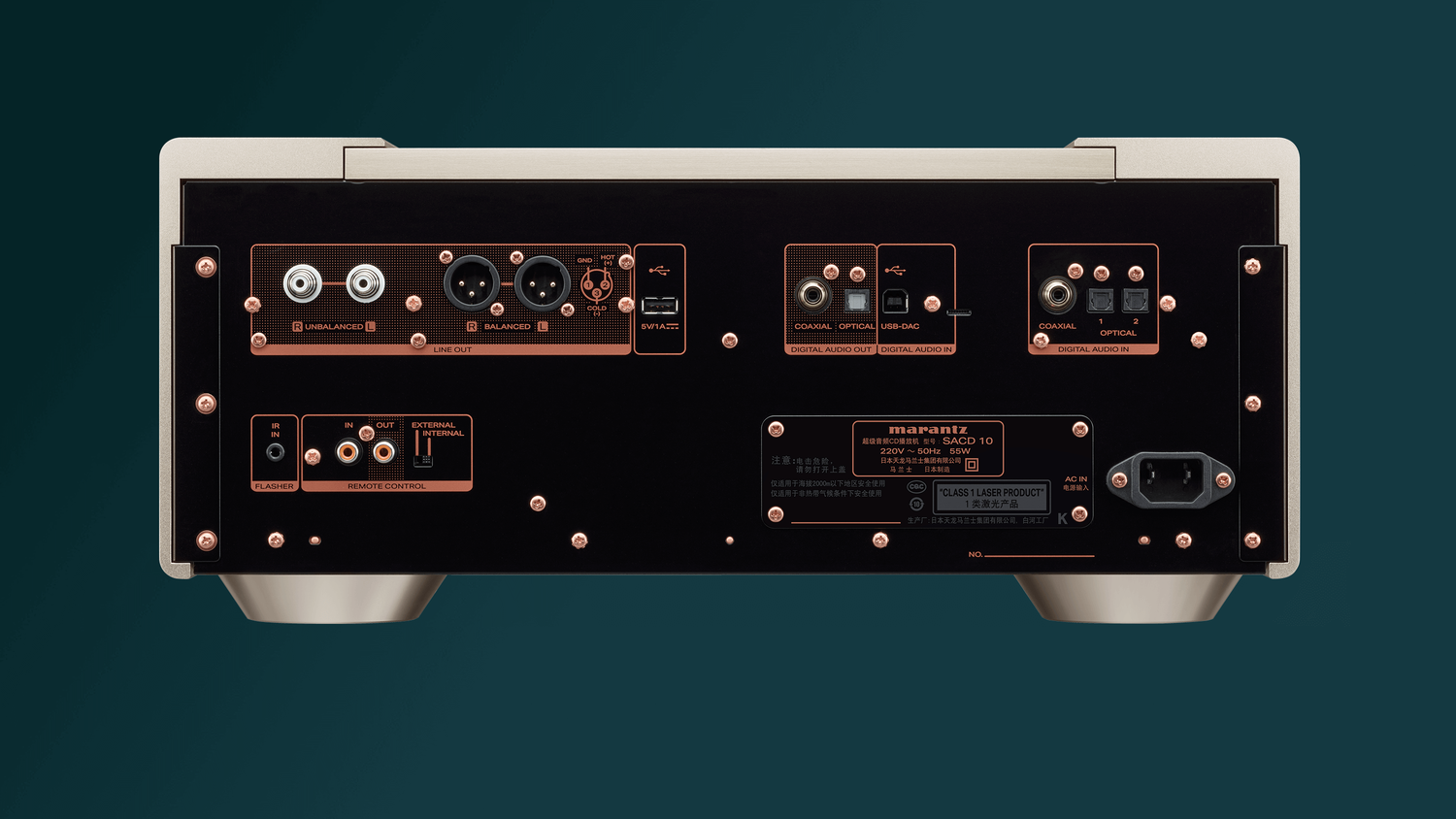

连接
-
Fixed Analog Output (RCA)
Cinch × 1
Thick nickel plated Maching copper L/R independent terminals - Fixed Balanced XLR Output 1
-
Optical input / output (Maximum Support)
2/1
44.1 kHz - 192 kHz -
Coaxial input / output (Maximum Support)
2/1
44.1 kHz - 192 kHz - 耳机输出put 是 (φ6.3 x 1)
- 远程控制 Bus Termina 是
- Remote Internal / External Switch 是
- AC Inlet 是
- Accessory Box 是
- 远程控制ler RC004PMND
- Battery 是 (AAA ×2)
- Power Cord 是 (ALL region : Audio Grade : OFC)
-
Other
Stereo RCA Cable ×1
emote connector cable ×1
oA card
