Features
- Channels 2
- Current Feedback Topology Yes
- Full balanced circuitry architecture No
- Double Mono Power Amp construction No
- Phono EQ: Standard / Marantz Musical / Marantz Musical Premium Yes / No / No
- Digital in: USB-B / optical / coaxial / USB-A No / 2 / 1 / 1
- Sample Rate digital In 192 kHz / 24-bit
- USB-A: DSD / WAV / FLAC / AIFF / ALAC <=5.6 / 192 / 192 / No / 192
- USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 No
- USB-B PCM sample rate No
- Asynchronous mode rear USB No
- Bit-perfect transmission No
- Ground isolator for DAC Mode operation No
- Tuner: DAB / DAB+ / FM (RDS) No
- Bluetooth / aptX / NFC Yes / No / No
- Streaming audio from PC Yes
- Wi-Fi / Wired LAN Yes / Yes
- Internet radio Yes
- AirPlay 2 Yes
- Windows Play to Yes
- Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
- Amazon Prime Music* / Pandora* Yes / No
- HEOS Multiroom and Streaming Yes
- Voice Control - Works with Amazon Alexa No
- Voice Control - Google Assist / Apple Siri No / Yes
- Voice Control - Microphone built-in No
- DSD-Audio network streaming Yes
- Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes
- Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF Yes / Yes / Yes / Yes / No
- Gapless Playback Yes
- Remote APP: iDevice / Android Yes / Yes
- Analog Mode No
- HDAM version SA3, SA2
- Power Transformer: Toroidal / El Yes / No
- High Grade Audio Components Yes
- Customised Components Yes
- Symmetric PCB Layout Yes
- Aluminium extrusion heat sink Yes
- Copper Plated Chassis No
- Tri Tone Control (Bass / Mid / Treble) No
- Balance / Bass / Treble / Loudness Yes / Yes / Yes / No
Others
- Marantz Musical Digital Filtering No
- Linear Drive Power Supply Yes
- Liniear volume control Yes
- BI-AMP and Multichannel option No
- Shottky diodes Yes
- Input buffer amp (all inputs / CD only) No / No
- System block shielding: Copper / metal / none No / No / Yes
- Double Layer Bottom Plate No
- Low Noise OELD display Yes
- Low noise LCD display No
- Source Direct Yes
- Power Amp direct No
- 5mm aluminium top plate No

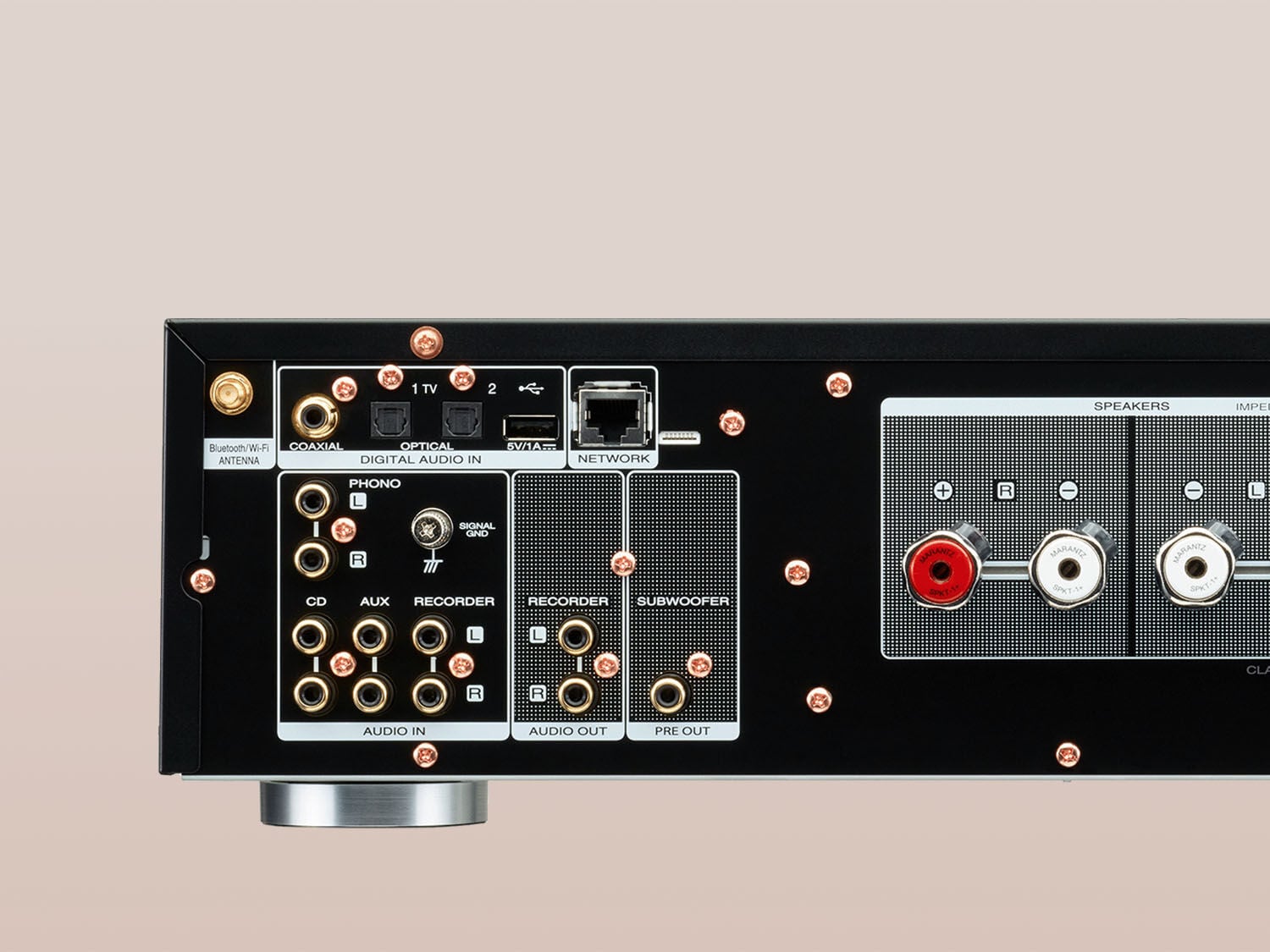

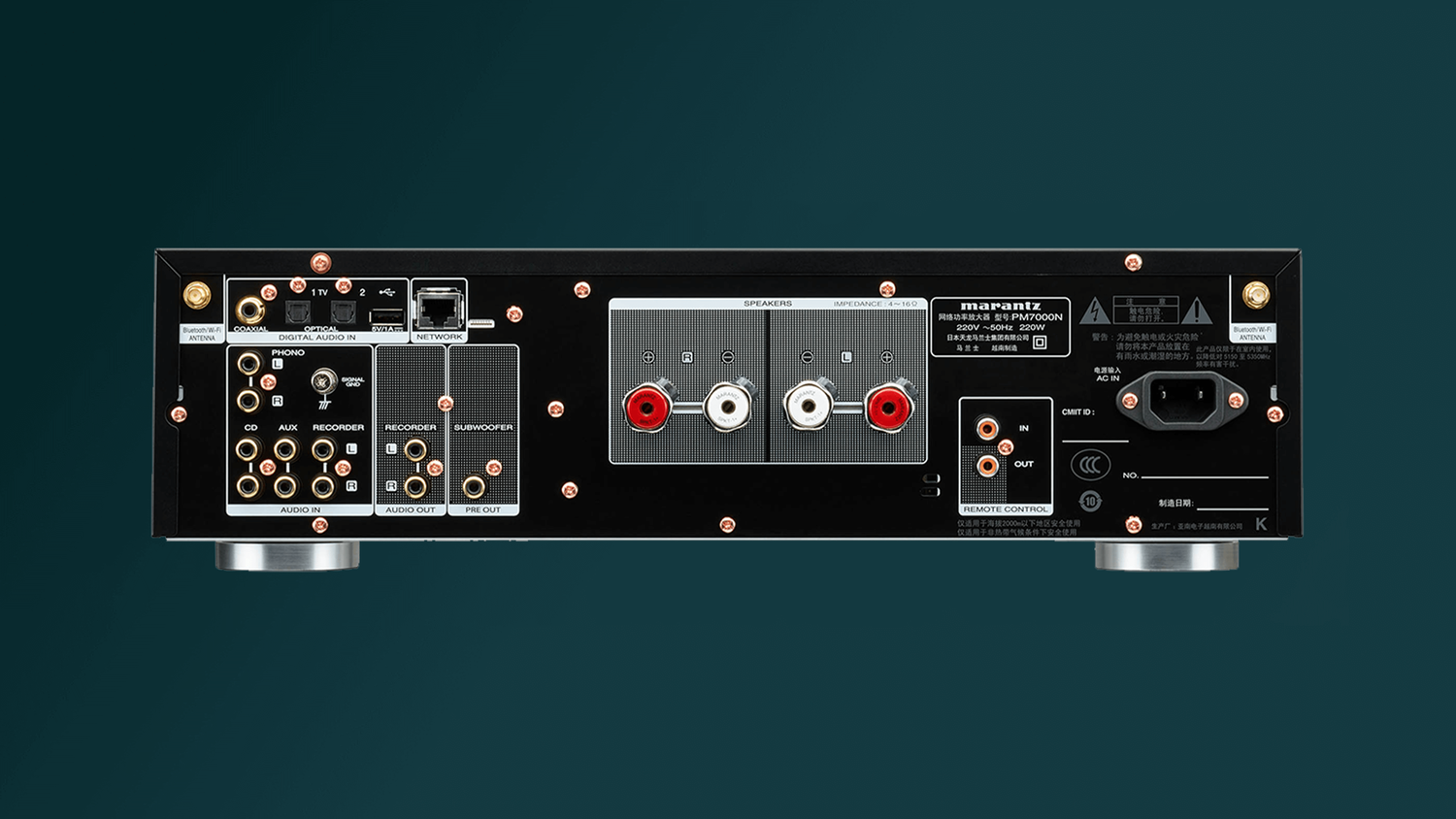

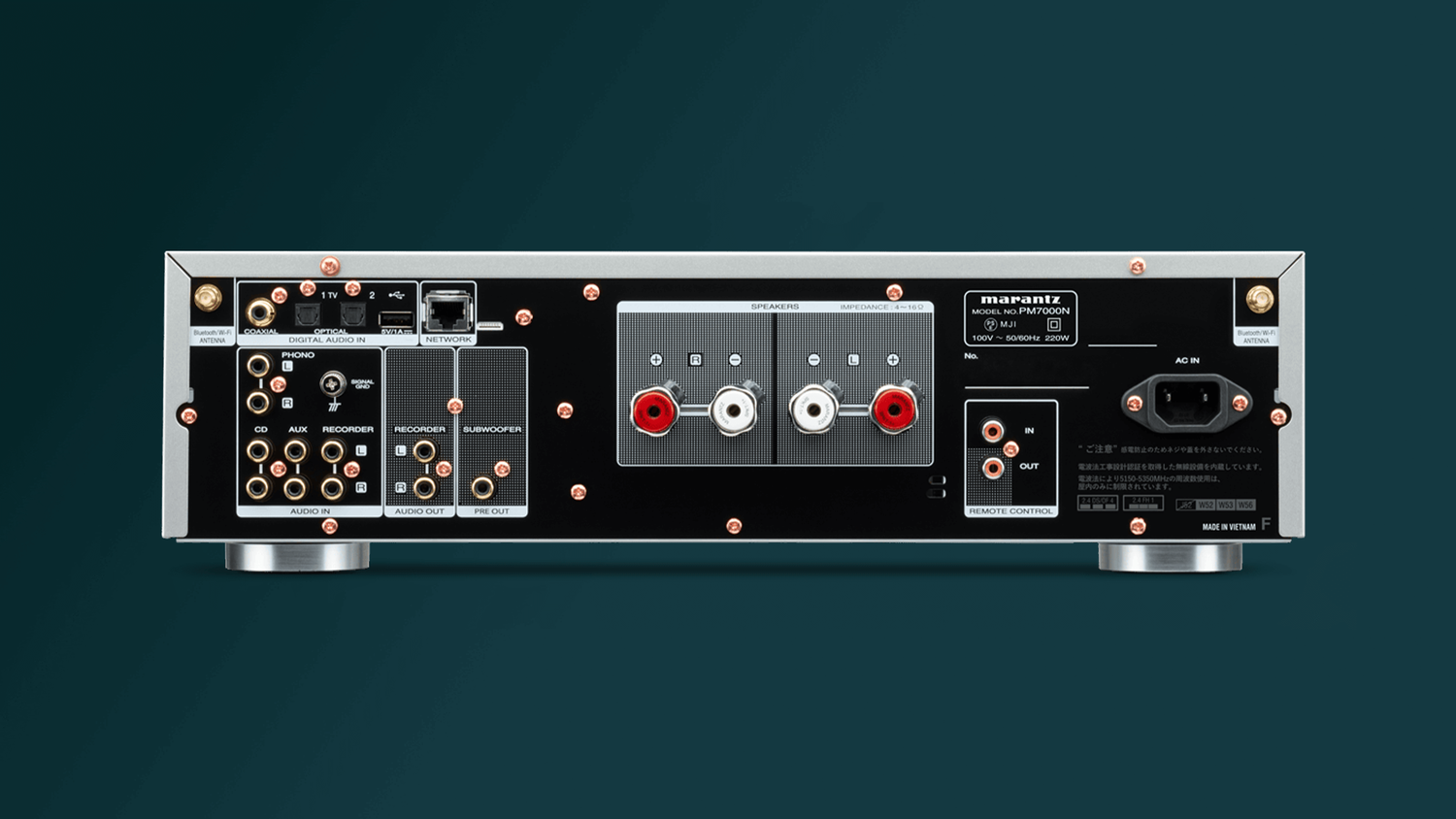

Inputs Outputs
- Audio Inputs 4
- Digital in: USB-B / optical / coaxial / USB-A No / 2 / 1 / 1
- Phono Input: MM / MC Yes / No
- Audio Outputs 1
- Balanced In / Out No
- Pre-out / Main-in subwoofer / No
- Power Amp Direct IN No
- HDMI: inputs / outputs No
- Gold Plated Cinch Yes
- Speaker A / B No
- Speaker Terminals Marantz SPKT-1+
- Number of terminals 2
- D-Bus Yes
- Floating Control Bus (3.5 mm mono jack x 2) No
- Headphone Out Yes
- Headphone Gain Control (low / mid / high) No
Specifications
- Power Output (8 / 4 Ohm RMS) 60 W / 80 W
- Frequency response 5 Hz-100 kHz
- Total Harmonic Distortion 0.02%
- Damping Factor 100<
- Input Sensitivity: MM 2 mV / 47 kOhm
- Input Sensitivity: MC No
- Signal to Noise Ratio: MM/MC 87 dB / No
- Input Sensitivity: High level 200 mV / 20 kOhm
- Input Sensitivity: Balanced High level No
- Signal to Noise Ratio: High level 115dB(2V input)
- Input Sensitivity: Power Amp Direct IN No
- Signal to Noise Ratio: Power Amp Direct IN No
General
- Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
- Metal Front Panel Yes
- Power Consumption in W 220
- Standby Consumption in W 0.3
- Auto Power off Yes
- Detachable Power Cable Yes
- Remote Control RC004PM
- System Remote Function Yes
- Maximum Dimensions (W x D x H) in mm 440 x 379 x 125
- Weight in kg 10.3
- Carton Maximum Dimensions (W x D x H) in mm 547 x 469 x 235
- Carton Weight (inc. product) in kg 12.3
